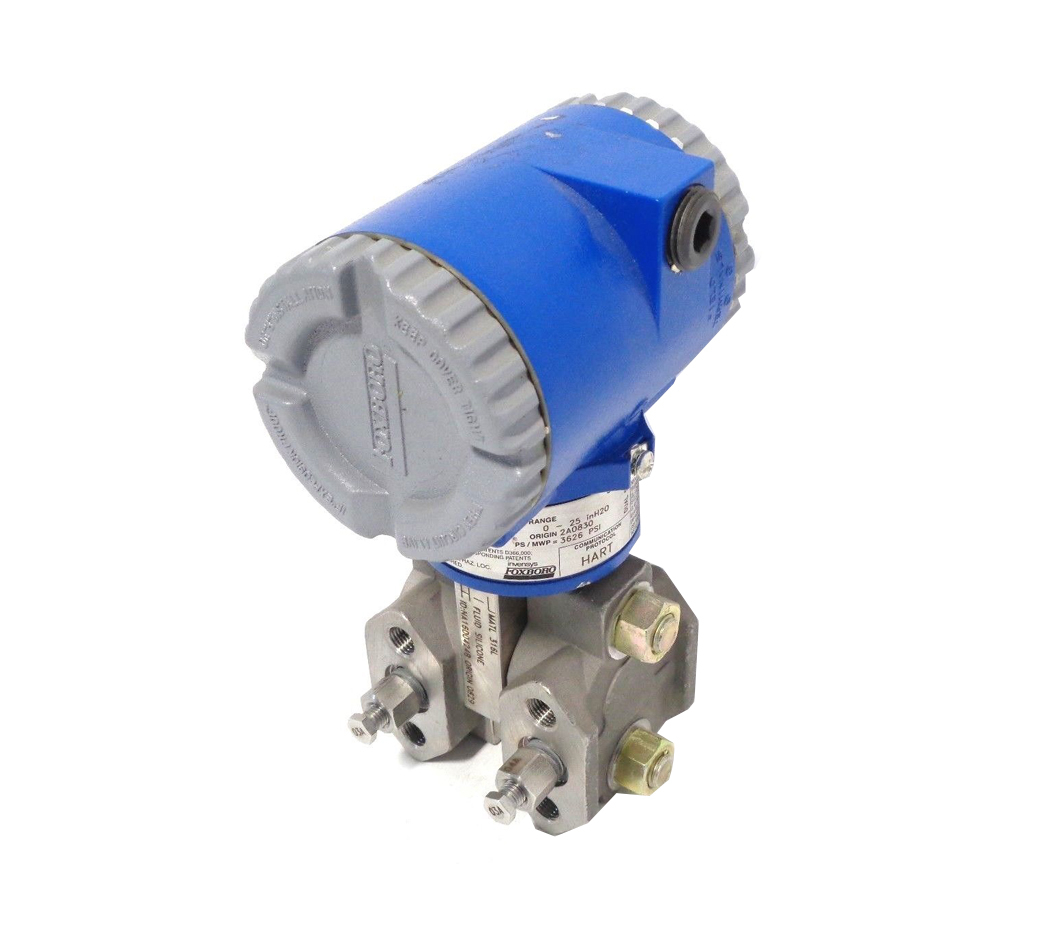

IDP10 I/A Series Differential Pressure Transmitter(IDP10S-T22B06AA-L1T),foxboroBySE

$2,598.30
$3,320.00
-$721.70
Quantity

Description

  • Estimated Lead Time : 21 - 25 weeks.

  • Manufacturer : Foxboro ( by Schneider Electric )

  • Product No. : IDP10S-T22B06AA-L1T

  • Product Type : IDP10 I/A Series Differential Pressure Transmitter

  • Model : IDP10S - Intelligent Differential Pressure Transmitter

  • Electronics Versions and Output Signal : -T - HART and 4 to 20 mA

    • Structure Code : 22

    • Static Pressure : 3626 psi

    • Cover Material : 316 ss

    • Sensor Diaphragm Material : 316L ss

    • Sensor Fill Fluid : Silicone

  • Span Limits (Differential Pressure Units) : B

    • inH2O (at 68°F) : 0.5 and 200

    • kPa : 0.12 and 50

    • mbar : 1.2 and 500

  • Process Connector Type (material is the same as the process cover material) : 0 - None

  • Conduit Connection and Housing Material : 6 - M20 Conduit Connection, Both Sides, 316 ss Housing

  • Electrical Certifications : AA - ATEX intrinsically safe, Ex ia IIC

  • Shipping Weight : 7 Kg
