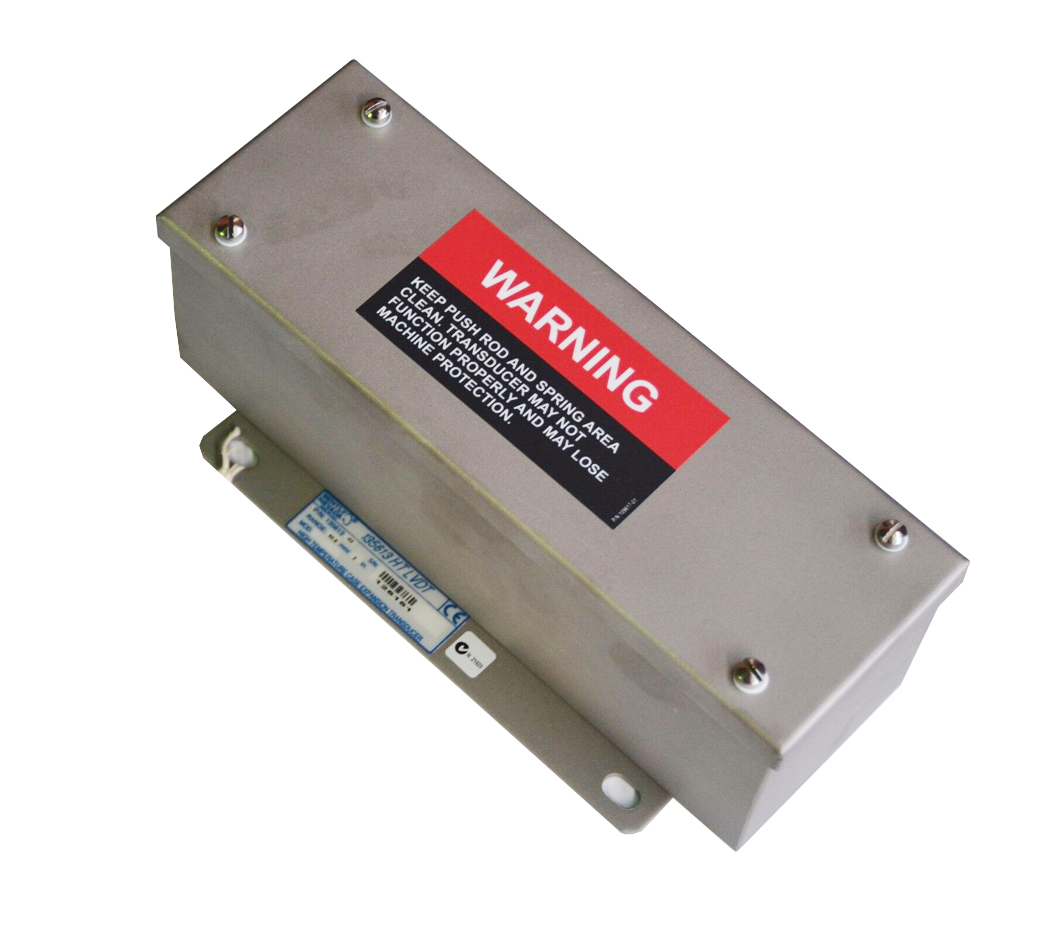

High Temperature Case Expansion Transducer Assembly (dc)(135613-02-00),bently nevada

$3,683.70
$4,707.00
-$1,023.30
Quantity

Description

  • Estimated Lead Time : 8 - 10 weeks.
  • Manufacturer : Bently Nevada
  • Product No. :135613-02-00
  • Product type : High Temperature Case Expansion Transducer Assembly (dc)
  • Made in U.S.A
  • Linear Range Option : 02 = 50.8 mm (2.0 in) with a 152.4 mm (6.00 in) rod
  • Spring Option : 00 = Without spring return
  • Operating Temperature : -25 °C to +85 °C (-13 °F to +185 °F).
  • Storage Temperature : -55 °C to +125 °C (-67 °F to +257 °F).
  • Electrical Scale Factor : 0.10 V/mm (2.5 V/in).
  • Linear Range : 50.8 mm (2.00 in).
  • -3 dB Frequency : 200 Hz (typical).
  • Stability : 0.125% full-scale.
  • Non-Linearity : Less than 0.25% full-scale. Temperature Coefficient: 0.05%/°C (0.028%/°F) maximum.
  • Dimensions (HxWxD), approx : 8.89cm x 11.7cm x 24.1cm
  • Weight : 2.3 Kg
  • Shipping Weight : 4 Kg
