Description
-
Estimated Lead Time : 4 - 5 weeks.
-

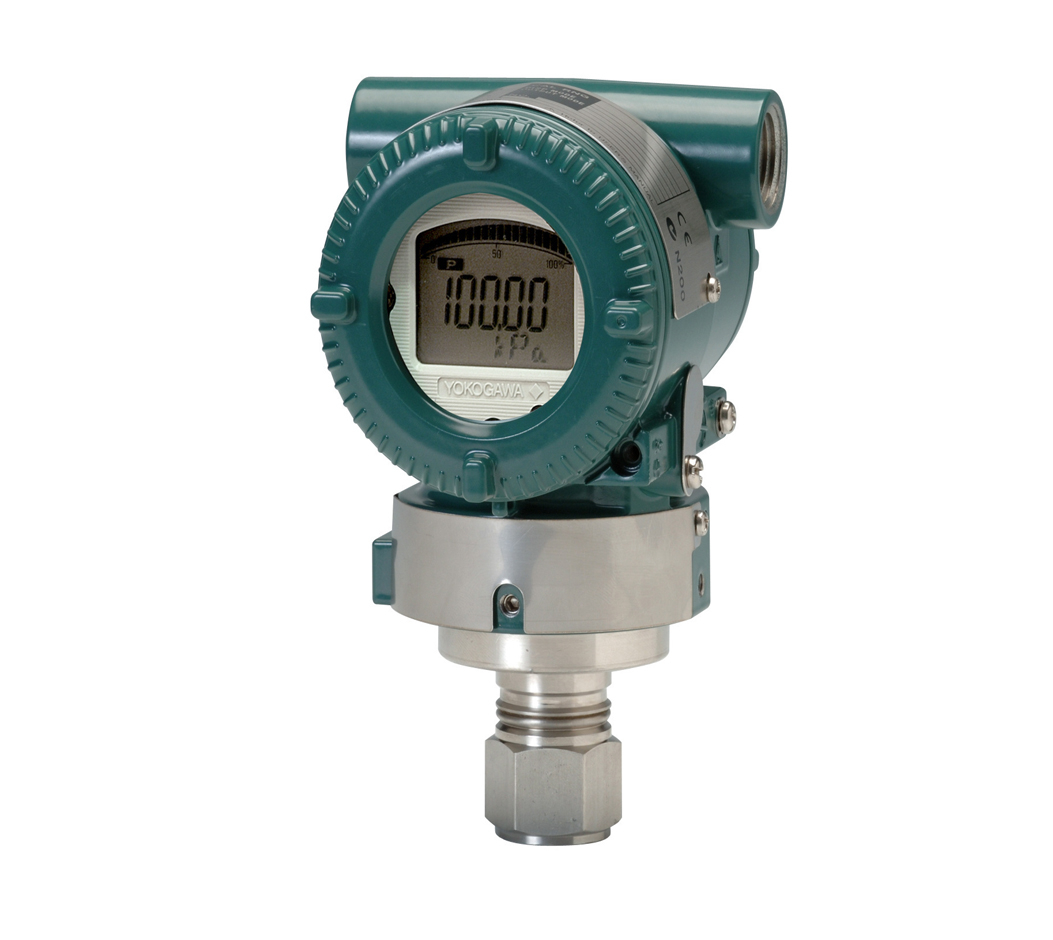

Manufacturer : Yokogawa
-
Product No. : EJA530E-JCH4N-012DL/NF2
-
Product Type : Gauge pressure transmitter
-
Output signal : J = 4 to 20 mA DC Output with digital communication (HART 5/HART 7 protocol)
-
Measurement span (capsule) : C = 0.5 to 10 MPa (72.5 to 1450 psi)
-
Wetted parts material : H
-
Process connector : Hastelloy C-276
-
Diaphragm : Hastelloy C-276
-
Others : Hastelloy C-276
-
Process connections : 4 = 1/2 NPT female
-
N : Always N
-
0 : Always 0
-
Amplifier housing : 1 = Cast aluminum alloy
-
Electrical connection : 2 = 1/2 NPT female, two electrical connections without blind plugs
-
Integral indicator : D = Digital indicator
-
Mounting bracket : L = 316 SST 2-inch pipe mounting
-
NF2
-
Shipping Weight : 8 Kg
