Description
Estimated lead time : 8-10 Weeks
Manufacturer: Allen-Bradley
Product Number: 266HSH WKEA1E2L1B7C1H3

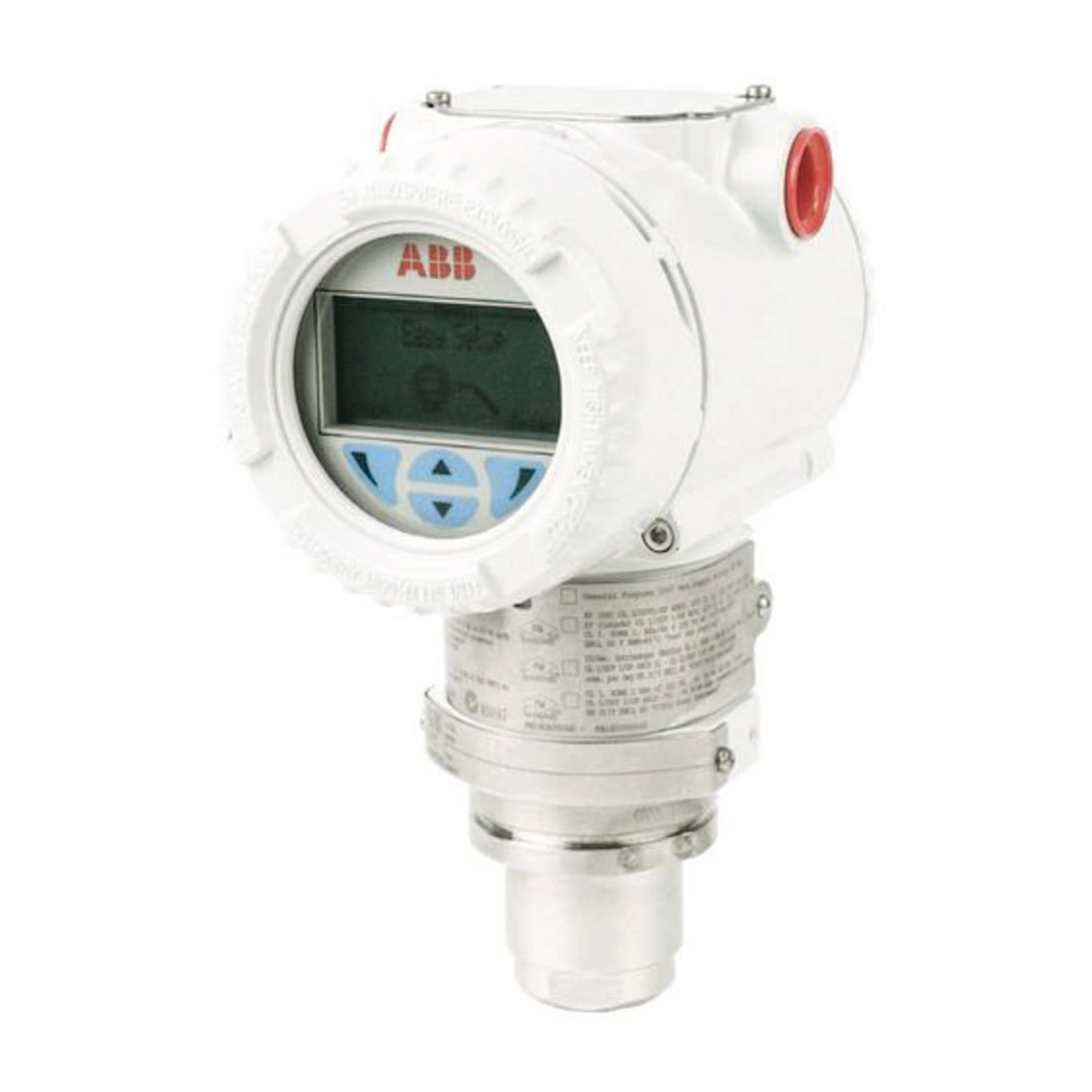

Product Type : Gauge Pressure Transmitter
266HSHWKEA1E2L1B7C1H3
Series Model : 266HSH = Gauge Pressure Transmitter – BASE ACCURACY 0.06 %
Sensor - Span Limits : W = 1400 and 70000 kPa 14 and 700 bar 203 and 10150 psi (REMARK) (Note 22)
Diaphragm Material/Fill Fluid (wetted parts) : K = Hastelloy C-276™ 1/2 – 14 NPT-f male (Note 5)
Process connection (wetted parts) : E = AISI 316 L ss 1/2 – 14 NPT-f female NACE
Housing material and electrical connection: A = Aluminium alloy (barrel version) M20 x 1.5 (CM 20)
Output/Additional options : 1 = HART digital communication and 4 to 20 mA Options requested by “Additional ordering code”2
Hazardous area certifications : E2 = ATEX Explosion Proof Group II Category 1/2 G Ex d IIC T6 and Group II Category 1/2 D Ex tD A21 IP67 T85 °C (Note 13)
Integral LCD : L1 = Digital LCD integral display
Additional tag plate: C1= Laser printing of tag on stainless steel plate
Material traceability : H3 = Inspection certificate EN 10204–3.1 of process wetted parts
