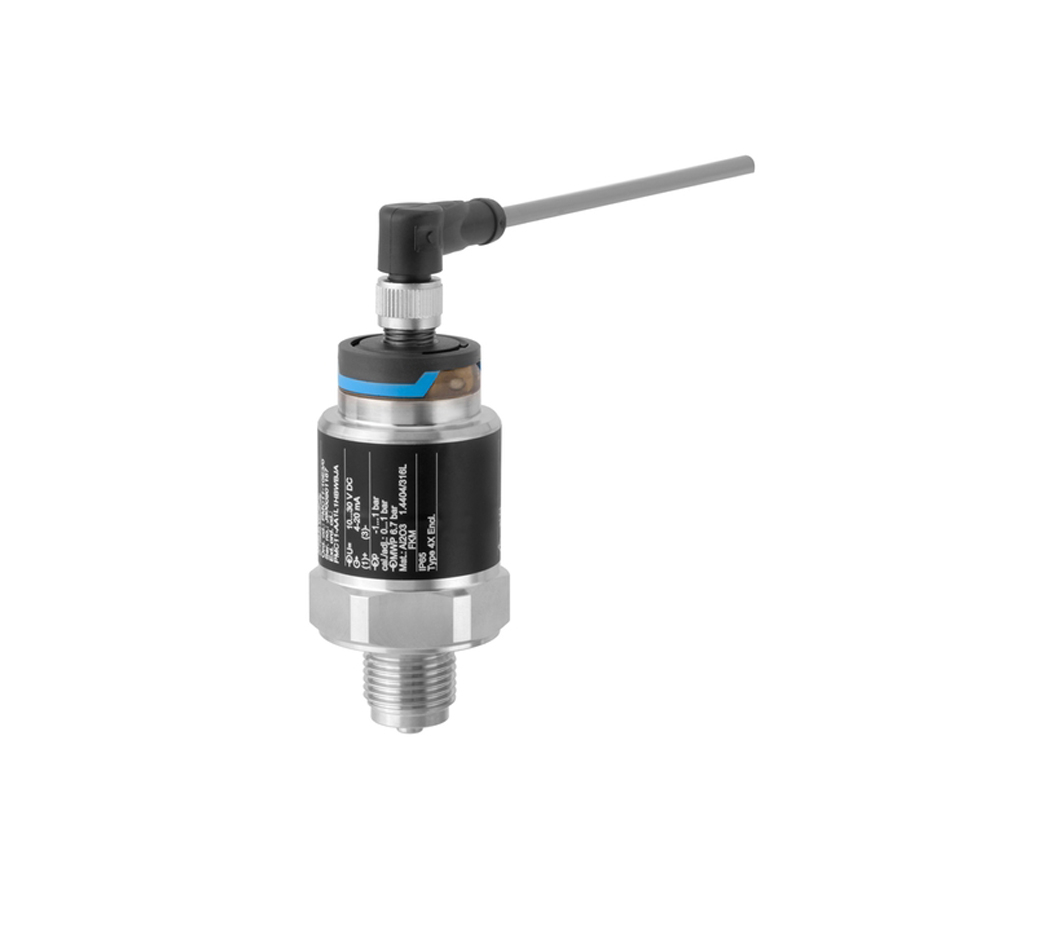

Gauge Pressure And Absolute Pressure(PMC21-8PF6/0),endress+hauser

$504.90
$645.00
-$140.10
Quantity

Description

  • Estimated Lead Time : 4 - 6 weeks.
  • Manufacturer : Endress + Hauser
  • Product No. : PMC21-8PF6/0
  • Product type : Gauge Pressure And Absolute Pressure
  • Field of application : Gauge pressure and absolute pressure
  • Process connections : Thread ISO 228, Thread DIN 13, Thread ASME, Thread JIS
  • Measuring ranges : From –100 to +100 mbar (–1.5 to +1.5 psi) to –1 to +40 bar (–15 to +600 psi).
  • OPL (depends on the measuring range) : Max. 0 to +60 bar (0 to +900 psi)
  • Process temperature range : –25 to +100 °C (–13 to +212 °F)
  • Ambient temperature range : –40 to +85 °C (–40 to +185 °F)
  • Devices for hazardous areas : –40 to +70 °C (–40 to +158 °F)
  • Reference accuracy : Up to 0.3 %, TD 5:1, for details see the "Reference accuracy" section
  • Supply voltage : 10 to 30 V DC
  • Output : 4 to 20 mA
  • Shipping weight : 3 Kg
