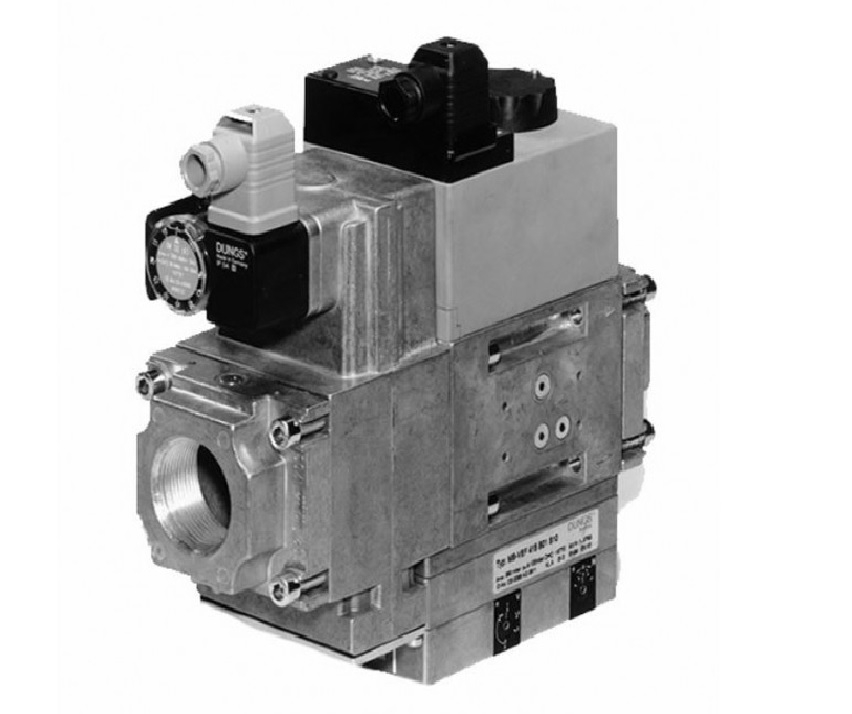

GasMultiBloc®, Control and safety combination, Gas-air-ratio control(MB-VEF 420 B01 S30),dungs

$1,539.00
$1,967.00
-$428.00
Quantity

Description

  • Estimated Lead Time : 1-10 days

  • Manufacturer : Dungs

  • Product Number: MB-VEF 420 B01 S30

  • Series:MB-VEF 415 B01

  • Use: MB-VEF integrates a filter, gas/air ratio controls, two class A valves and a pressure switch.

        MB-VEF 420 B01 S30

  • MB : MultiBloc

  • VEF: Gas-air-ratio control

  • 420- Construction Size: DN 50, V2, Double-seat valve

  • B01- Design type: Generation 1

  • S- Series(type-independent)

  • 3- Outlet Pressure: 100 - 360 mbar

  • 0- Control of V1 & V2 : Common

  • Opening Time: < 1 s

  • Maximum Pressure: 50 VA

  • Installation location: Burner devices

  • Type: Electric

  • Number of phases:: 1

  • Protection class: IP54

  • Voltage, V: 220

  • Current frequency, Hz: 50

  • Inlet/outlet diameter, mm: Rp 2"

  • Operating temperature range BOC, °C: from -15 to +70

  • Weight: 7.9 KG

  • Shipping Weight: 9.0 kg
