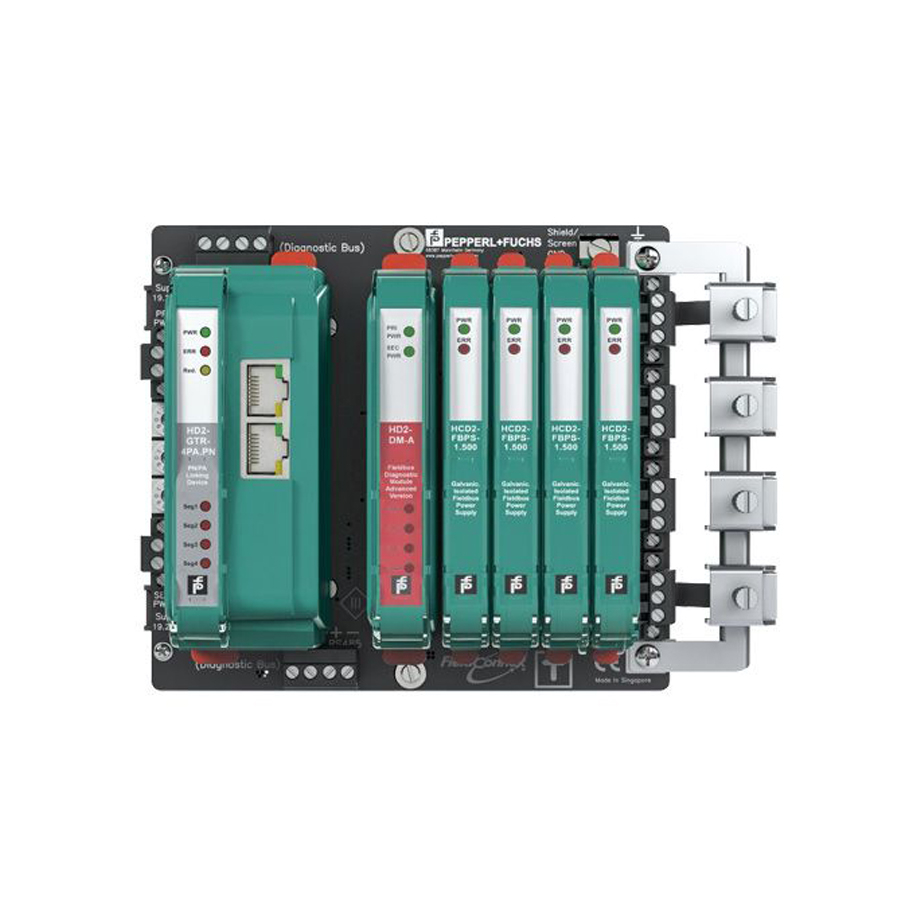

Fieldbus Power Hub, Motherboard for Gateway and Power Supply Modules(MBHC-FB-4.GT),Pepperl+Fuchs

$1,212.30
$1,549.00
-$336.70
Quantity

Description

  • Estimated Lead Time : 8 - 10 weeks.
  • Manufacturer : Pepperl+Fuchs
  • Product No. : MBHC-FB-4.GT
  • Product type : Fieldbus Power Hub, Motherboard for Gateway and Power Supply Modules
  • Design / Mounting : Motherboard based
  • Supply Connection : redundant
  • Rated voltage Ur : 19.2 ... 35 V SELV/PELV
  • Rated current Ir : 12 A
  • Power dissipation typ. : 0.4 W per segment
  • Fieldbus interface : Number of segments 4 simplex
  • Indicators/operating means : Fault signal VFC alarm 1 A, 50 V DC, normally closed
  • Ambient temperature : -40 ... 70 °C (-40 ... 158 °F)
  • Storage temperature : -40 ... 85 °C (-40 ... 185 °F)
  • Relative humidity : < 95 % non-condensing
  • Connection type : plug-in terminals , spring terminal and screw terminal
  • Weight : 0.54 Kg
  • Shipping weight : 1.5 Kg
