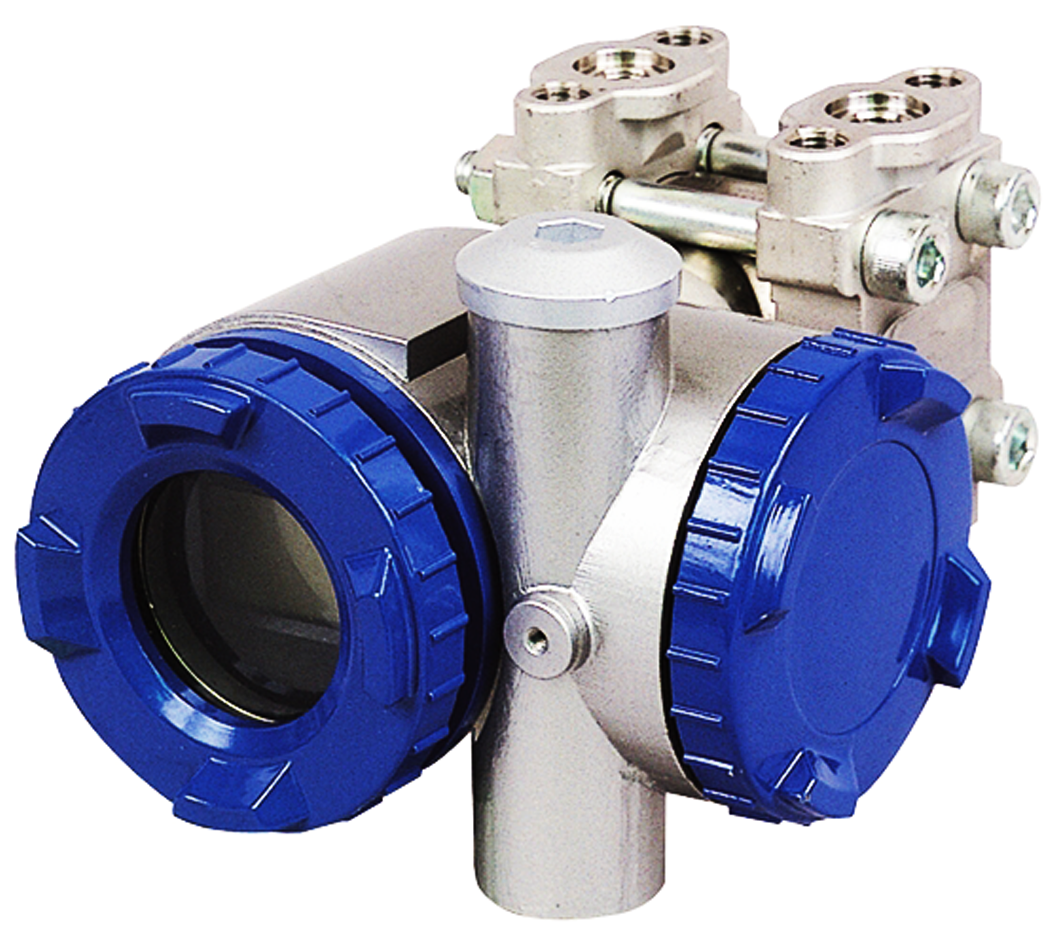

FCX-AIII Series Pressure Transmitter <FKG-5>(FKGW02V5-BKCBY-GY),fuji electric

$2,019.60
$2,396.60
-$377.00
Quantity

Description

  • Estimated Lead Time : 6 - 8 weeks.
  • Manufacturer : Fuji Electric
  • Product No. : FKGW02V5-BKCBY-GY
  • Product type : FCX-AIII Series Pressure Transmitter
  • Connections : W = 1/4"-18 NPT Process connection, M10 or M12 (*1) Oval flange connect, M20 x 1.5 Conduit Connection, L Type Case.
  • Span and materials : 2V = 5...500 {0.05...5} Span limit [kPa]{bar}, 316 SS process cover, 316L SS Diaphragm, 316L SS Wetted cell body.
  • Indicator and arrester : B = Analog, 0 to 100% linear scale indicator, None arrester
  • Approvals for hazardous locations : K = ATEX Instrinsic Safety
  • Vent/drain and mounting bracket : C = Standard Vent/drain, Yes 304L SS mounting bracket.
  • Options : B = Yes extra SS tag plate and None SS elec. housing.
  • Special applications and fill fluid : Y = Standard treatment and Silicone oil Fill Fluid
  • Gasket and Bolt/Nut : G = Teflon gasket, 316L SS bolt/nut (M10)
  • Other options : Y = None, intruction manuals attached
  • Power supply: Transmitter operates on 10.5V to 45V DC at transmitter terminals. 10.5V to 32V DC for the units with optional arrester.
  • Output signal: 4 to 20mA DC with digital signal superimposed on the 4 to 20mA signal.
  • Electrical connections: G1/2, 1/2”-14 NPT, Pg13.5, or M20 × 1.5 conduit
  • Process connections: 1/4”-18 NPT or Rc 1/4” on 54mm centers, as specified. Meet DIN 19213
  • Shipping weight : 8 Kg
