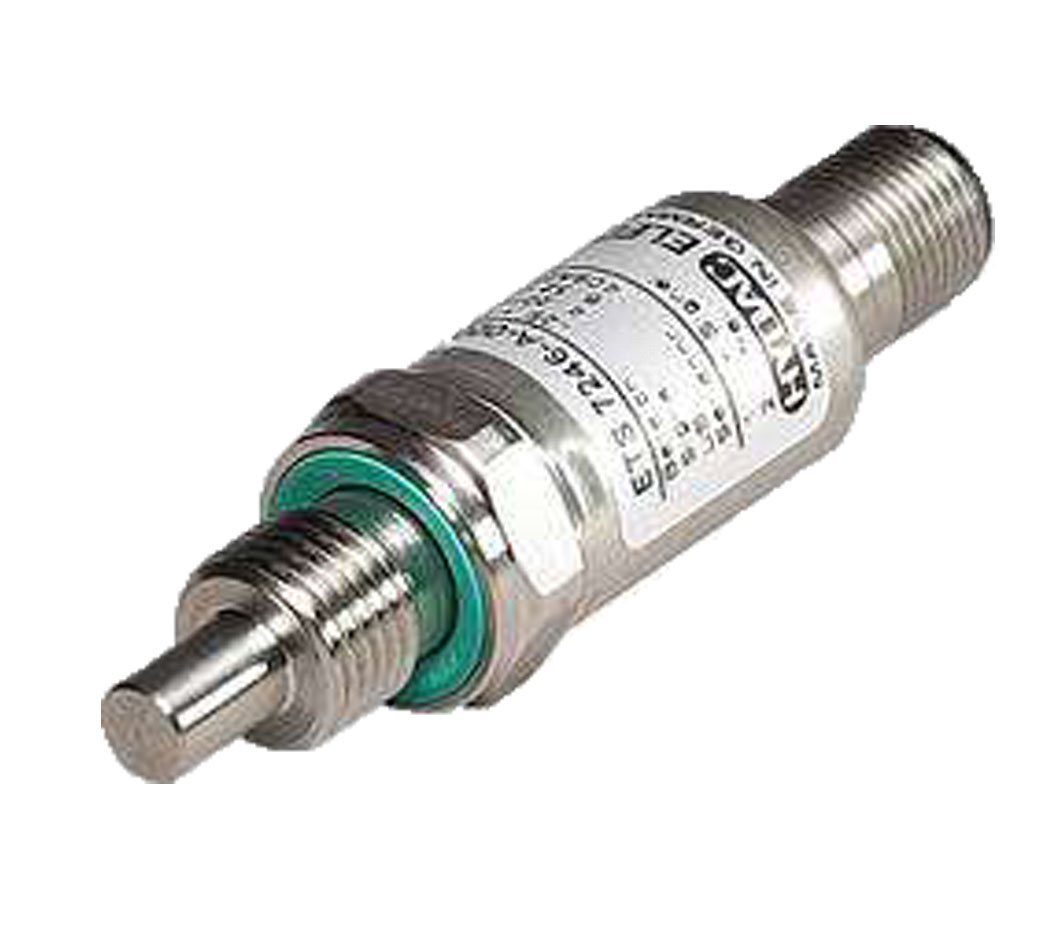

Electronic Temperature Transmitter(ETS7246-A-010-000),hydac

$225.00
$287.00
-$62.00
Quantity
Sku : ETS7246-A-010-000
Weight : 0.05kg

Description

  • Estimated lead time : 12 - 14 weeks

  • Manufacturer: Hydac

  • Product No. : ETS7246-A-010-000

  • Product Type : ETS7246-A-010-000 Electronic Temperature Transmitter

  • Input Data :

    • Measuring Range : -25 .. +100 °C

    • Probe Length : 1.0 cm

    • Probe diameter 0.67 cm

    • Pressure resistance : 600 bar

    • Mechanical connection : G1/4 A ISO 1179-2

    • Tightening torque, recommended : 20 Nm

    • Parts in contact with fluid : Mech. connection : Stainless steel (Seal : FKM)

  • Output Data :

    • Output signal, permitted load resistance : 4 .. 20 mA, 2-conductor, RLmax = (UB - 8 V) / 20 mA [kO], 0 .. 10 V, 3-conductor, RLmin. = 2 kO

    • Accuracy (at room temperature) : = ± 1.0 % FS typ, = ± 2.0 % FS max.

    • Temperature drift (environment) : = ± 0.02 % FS / °C

    • Response time acc. to DIN EN 60751 : t50: 4 s, t90: 8 s

  • Residual ripple supply voltage : = 5 %

  • Current consumption = 25 mA

  • Model Code (ETS7246-X-010-000) :

    • Mechanical Connection (4) : G1/4 A ISO 1179-2

    • Electrical Connection (6) : male M12x1, 4 pole (mating connector not supplied)

    • Signal :

      • A = 4 .. 20 mA, 2-conductor

      • B = 0 .. 10 V, 3-conductor

    • Probe Length (010) : 1.0 cm

    • Modification Number (000) : Standard

  • Weight : 0.05 Kg

  • Shipping Weight : 1.10Kg
