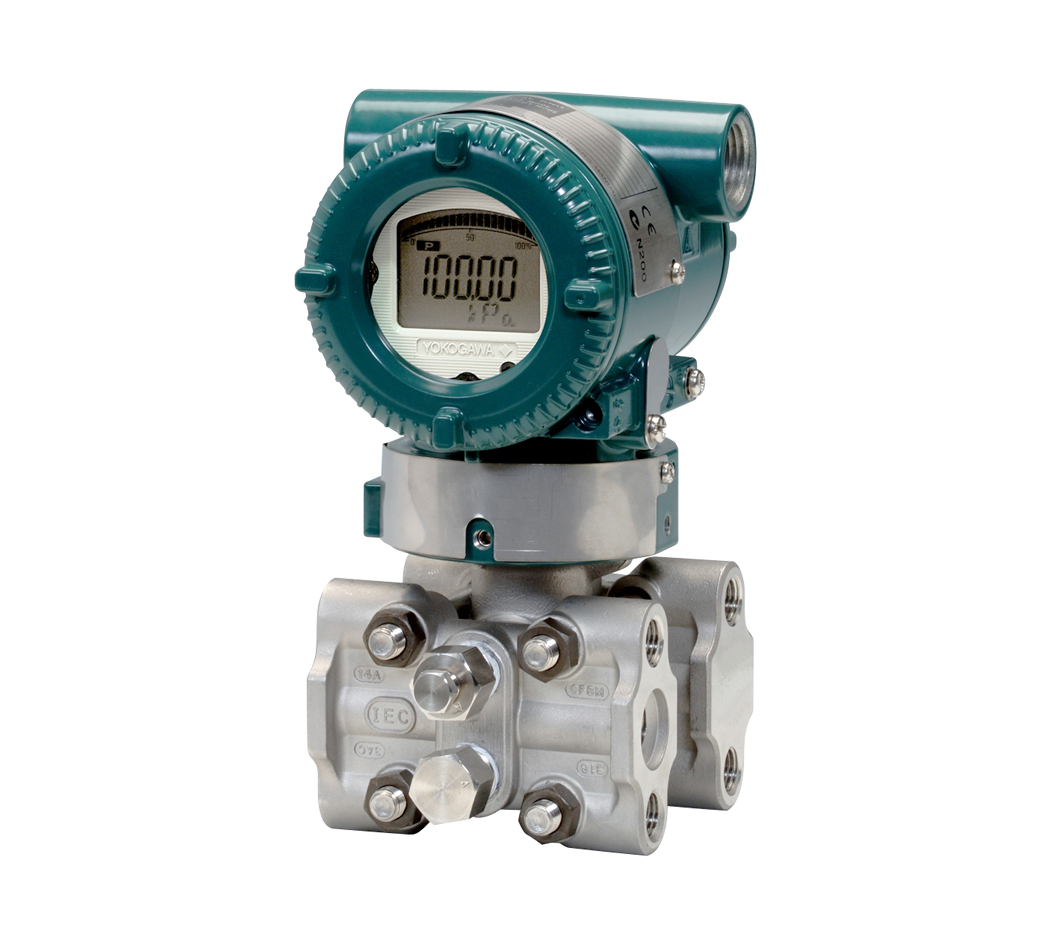

EJX430A Gauge pressure transmitter(EJX430A-EAB5G-92DDN/KU22/D3/M01/T01/N4),Yokogawa

$2,718.00
$3,473.00
-$755.00
Quantity

Description

  • Estimated Lead Time : 10 - 12 weeks.

  • Manufacturer : Yokogawa

  • Product No. : EJX430A-EAB5G-92DDN/KU22/D3/M01/T01/N4

  • Product type : EJX430A Gauge pressure transmitter

  • Output signal : E = 4 to 20 mA DC with digital communication (HART protocol)

  • Measurement span (capsule) : A = 0.0175 to 3.5 MPa (2.5 to 500 psi)

  • Wetted parts material : B = Monel equivalent, Monel, PTFE Teflon, Monel

  • Process connections : 5 = without process connector (1/4 NPT female on the cover flanges)

  • Bolts and nuts material : G = 316L SST stainless steel

  • Installation : 9 = Horizontal piping and left side high pressure

  • Amplifier housing : 2 = ASTM CF-8M stainless steel

  • Electrical connection : D = M20 female, two electrical connections and a 316 SST blind plug

  • Integral indicator : D = Digital indicator

  • Mounting bracket : N = None

  • ATEX : KU22 = Combined KF22, KS21 and ATEX Intrinsically safe Ex ic *1*2 [ATEX Intrinsically safe Ex ic] Applicable Standard: EN 60079-0:2012+A11:2013, EN 60079-11:2012 II 3G Ex ic IIC T4 Gc, Amb. Temp.: –30 to 60°C (–22 to 140°F) *3 Ui=30 V, Ci=27.6 nF, Li=0 µH

  • Calibration units : D3 = bar calibration (bar unit)

  • Material certificate : M01 = Cover flange

  • Pressure test/ Leak test certificate : T01 = Test Pressure: 3.5 MPa (500 psi), Nitrogen(N2) Gas*21 Retention time: one minute

  • Wired tag plate : N4 = 316 SST tag plate wired onto transmitter

  • Weight : 5 Kg

  • Shipping Weight : 8 Kg
