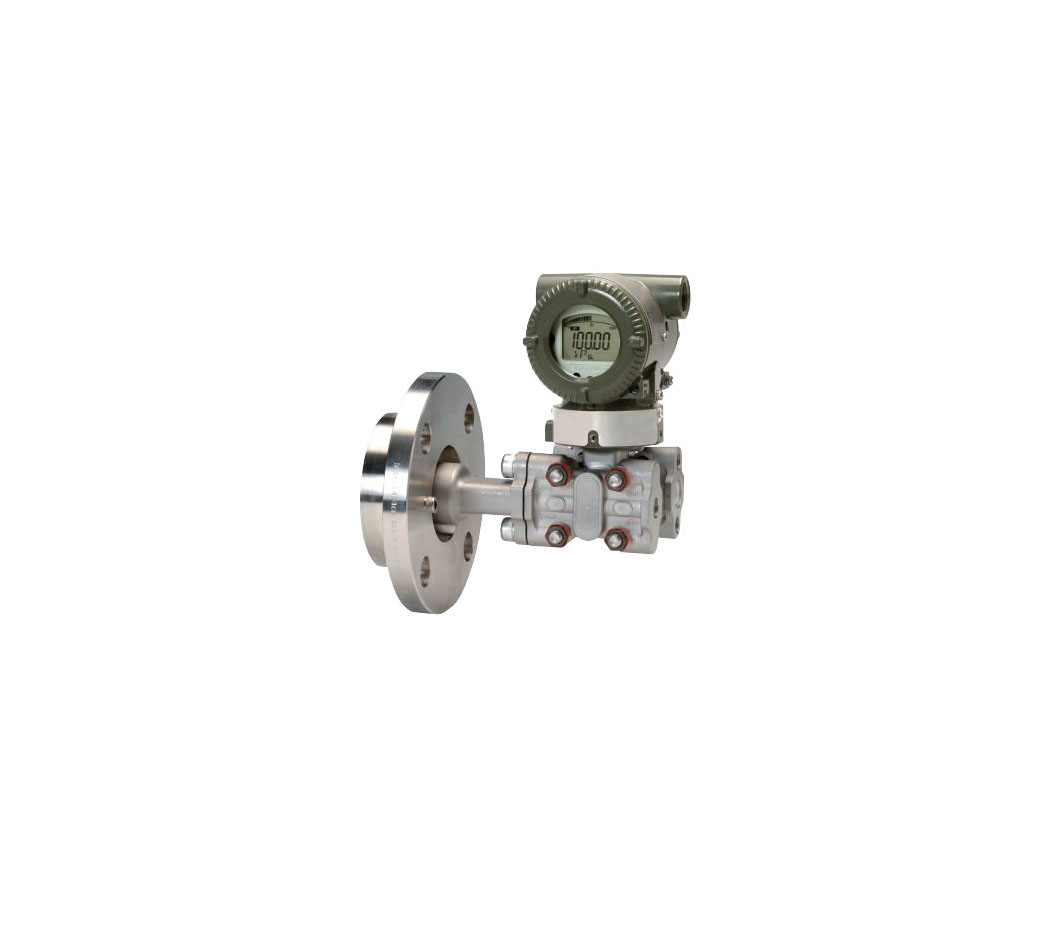

EJA210E Flange Mounted Differential Pressure Transmitter(EJA210E-JMS4G-917DN-WA13C2HW00-B/D4/TF1/M1W/T52/N4),Yokogawa

$2,428.20
$3,102.00
-$673.80
Quantity
Sku : EJA210E-JMS4G-917DN-WA13C2HW00-B/D4/TF1/M1W/T52/N4
Weight : 8.3kg

Description

  • Estimated Lead Time : 10 - 12 weeks.
  • Manufacturer : Yokogawa
  • Product No. : EJA210E-JMS4G-917DN-WA13C2HW00-B/D4/TF1/M1W/T52/N4
  • Product type : EJA210E Flange Mounted Differential Pressure Transmitter
  • Output signal : J = 4 to 20 mA DC with digital communication (HART 5/HART 7 protocol)
  • Measurement span (capsule) : M = 1 to 100kPa (4 to 400 inH2O)
  • Low pressure side wetted parts material : S = Cover flange and process connector ASTM CF-8M,Capsule Hastelloy C-276 (Diaphragm),F316L SST, 316L SST (Others),Capsule gasket Teflon-coated 316L SST,Drain/Vent plug 316 SST
  • Process connections : 4 = with 1/2 NPT female process connector
  • Coverflange bolts and nuts material : G = 316L SST
  • Installation : 9 = Horizontal piping type and left side high pressure
  • Amplifier housing : 1 = Cast aluminum alloy
  • Electrical connection : 7 = 1/2 NPT female, two electrical connections with a blind plug
  • Integral indicator : D = Digital indicator
  • N = Always N
  • Process connection style : W = Flush type
  • Flange rating : A1 = ANSI class 150
  • Flange size : 3 = 3-inch (80mm)
  • Flange material : C = 316 SST
  • Gasket contact surface : 2 = Flat (no serration)
  • Wetted parts material (high pressure side) : HW = 316L SST# Diaphragm, 316 SST# Others
  • Flushing connection ring : 0 = None
  • Extension : 0 = None
  • Fill fluid : B = For general use (Silicone oil) , –40 to 120°C Process temperature, –40 to 85°C Ambient temperature.
  • Calibration units : D4 = M calibration (kgf/cm2 unit)
  • Teflon film : TF1 = Diaphragm protection from sticky process fluid by FEP Teflon film attached with fluorinated oil. Operation range: 20 to 150°C, 0 to 2 MPa (Not applicable for vacuum service).
  • Material certificate : M1W = For Flush type, High Pressure side: Process flange, Block, Low Pressure side: Cover flange, Process connector
  • Pressure test/ Leak test certificate : T52 = ANSI/JPI Class 150 3 MPa (430 psi)
  • Wired tag plate : N4 = 316 SST tag plate wired onto transmitter
  • Weight : 8.3 Kg
  • Shipping weight : 11 Kg
