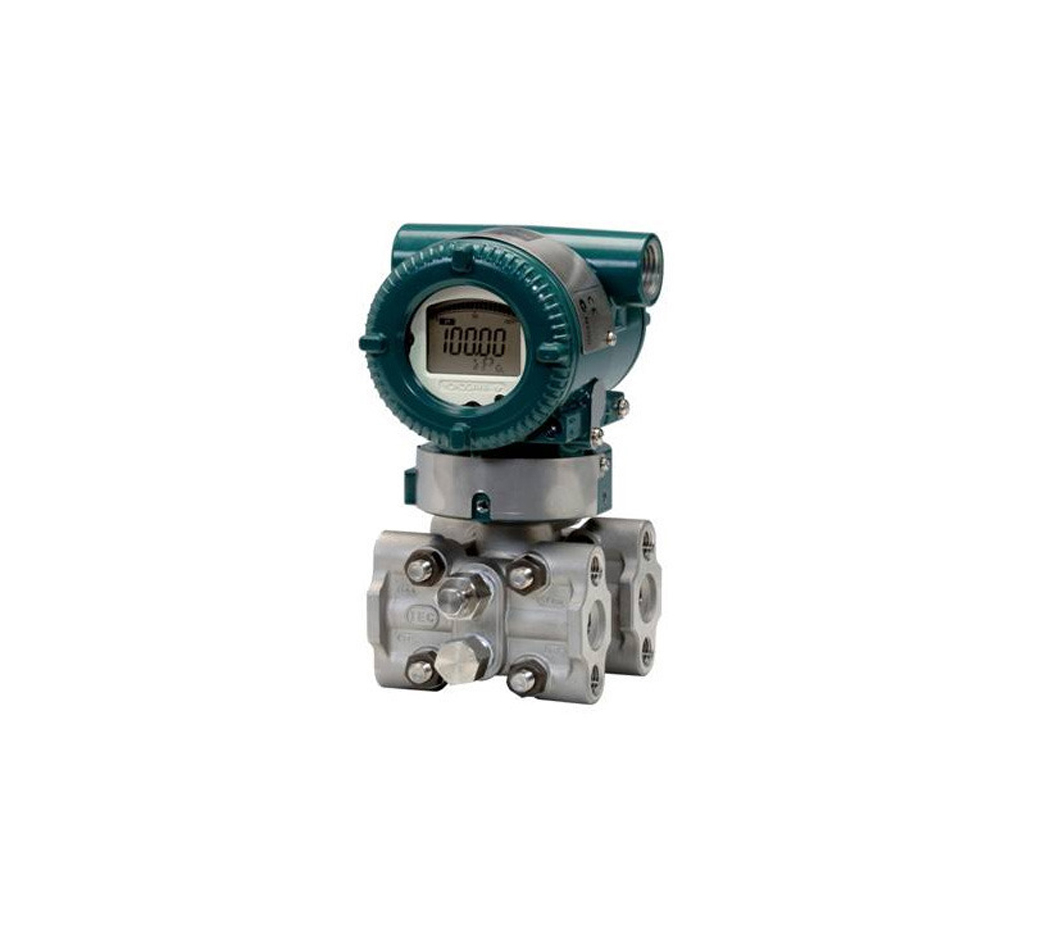

EJA110E Differential Pressure Transmitter(EJA110E-JMS5G-922DJ/KU22),Yokogawa

$1,624.50
$2,076.00
-$451.50
Quantity

Description

  • Estimated Lead Time : 10 - 12 weeks.

  • Manufacturer : Yokogawa

  • Product No. : EJA110E-JMS5G-922DJ/KU22

  • Product type : EJA110E Differential Pressure Transmitter

  • EJA110E : Differential pressure transmitter

  • J - Output signal : 4 to 20 mA DC with digital communication (HART 5/HART 7 protocol)

  • M - Measurement span (capsule) : 1 to 100 kPa (4 to 400 inH2O)

  • S - Wetted parts material

  • Cover flange and process connector : ASTM CF-8M

  • Capsule : Hastelloy C-276 *2 (Diaphragm) F316L SST, 316L SST (Others)

  • Capsule gasket : Teflon-coated 316 SST

  • Vent/Drain plug : 316 SST

  • 5 - Process connections See the table in the next page for the codes for a diaphragm seal system : Without process connector (1/4 NPTfemale on the cover flanges)

  • G - Bolts and nuts material : 316L SST

  • 9 - Installation : Horizontal piping and left side high pressure

  • 2 - Amplifier housing : ASTM CF-8M stainless steel*

  • 2 - Electrical connection : 1/2 NPT female, two electrical connections without blind plugs

  • D - Integral indicator : Digital indicator

  • J - Mounting bracket : 316 SST 2-inch pipe mounting, flat type (for horizontal piping)

  • KU22 : ATEX = Combined KF22, KS21 and ATEX Intrinsically safe Ex ic *1 *3 [ATEX Intrinsically safe Ex ic] Applicable Standard: EN 60079-0:2012+A11:2013, EN 60079-11:2012 II 3G Ex ic IIC T4 Gc, Amb. Temp.: –30 to 60°C (–22 to 140°F) *2 Ui=30 V, Ci=27.6 nF, Li=0 µH

  • Weight : 4.3 Kg

  • Shipping weight : 8 Kg
