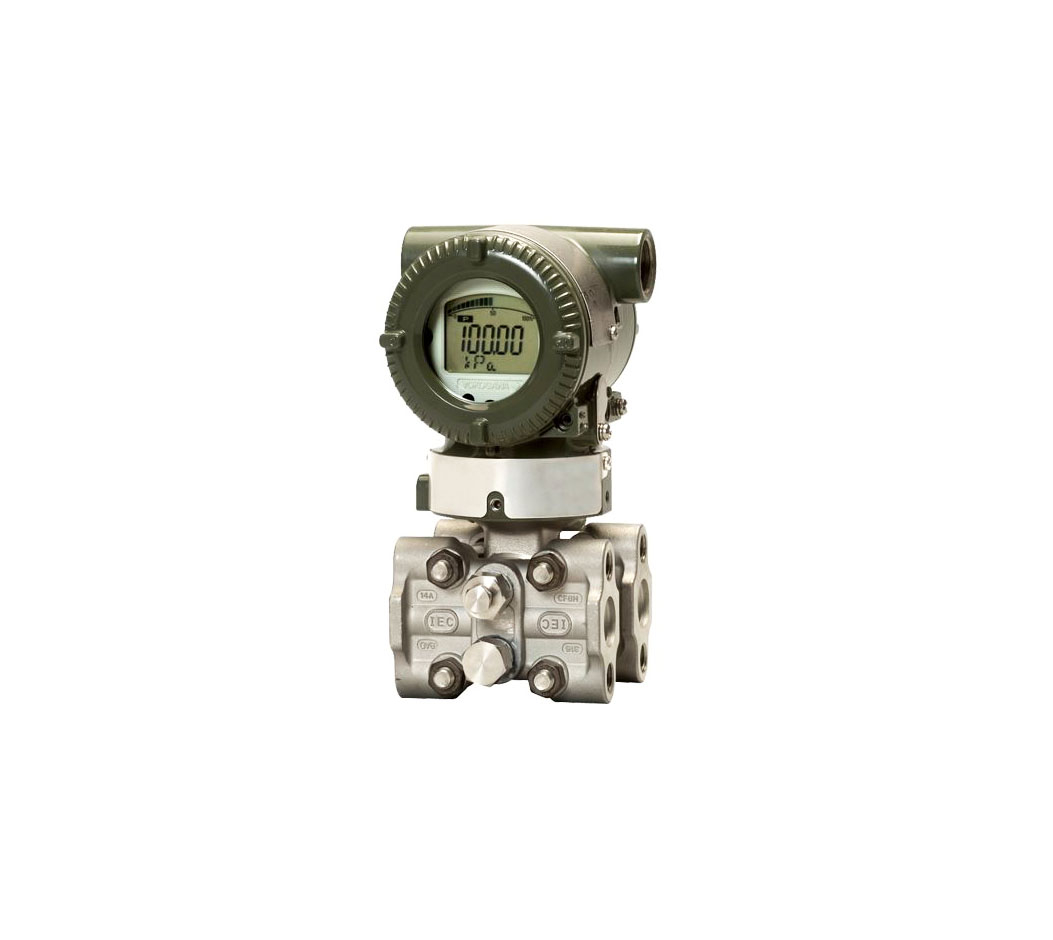

EJA110E Differential Pressure Transmitter(EJA110E-JMS4G-817EB/FU1/D4),Yokogawa

$1,178.10
$1,506.00
-$327.90
Quantity
Sku : EJA110E-JMS4G-817EB/FU1/D4
Weight : 3kg

Description

  • Estimated Lead Time : 10 - 12 weeks.

  • Manufacturer : Yokogawa

  • Product No. : EJA110E-JMS4G-817EB/FU1/D4

  • Product type : EJA110E Differential pressure transmitter

  • Output signal : J = 4 to 20 mA DC with digital communication (HART 5/HART 7 protocol)

  • Measurement span (capsule) : M = 1 to 100 kPa (4 to 400 inH2O)

  • Wetted parts material : S = ASTM CF-8M Cover flange and process connector, Hastelloy C-276 *2 (Diaphragm) F316L SST, 316L SST (Others) Capsule, Teflon-coated 316L SST Capsule gasket , 316 SST Vent/Drain plug.

  • Process connections : 4 = with 1/2 NPT female process connector

  • Bolts and nuts material : G = 316L SST

  • Installation : 8 = Horizontal piping and right side high pressure

  • Amplifier housing : 1 = Cast aluminum alloy

  • Electrical connection : 7 = 1/2 NPT female, two electrical connections and a blind plug

  • Integral indicator : E = Digital indicator with the range setting switch (push button)

  • Mounting bracket : B = 304 SST 2-inch pipe mounting, flat type (for horizontal piping)

  • Factory Mutual (FM) : FU1 = Combined FF1 and FS1

  • Calibration units. : D4 = M calibration (kgf/cm2 unit)

  • Weight : 3 Kg

  • Shipping Weight : 8 Kg
