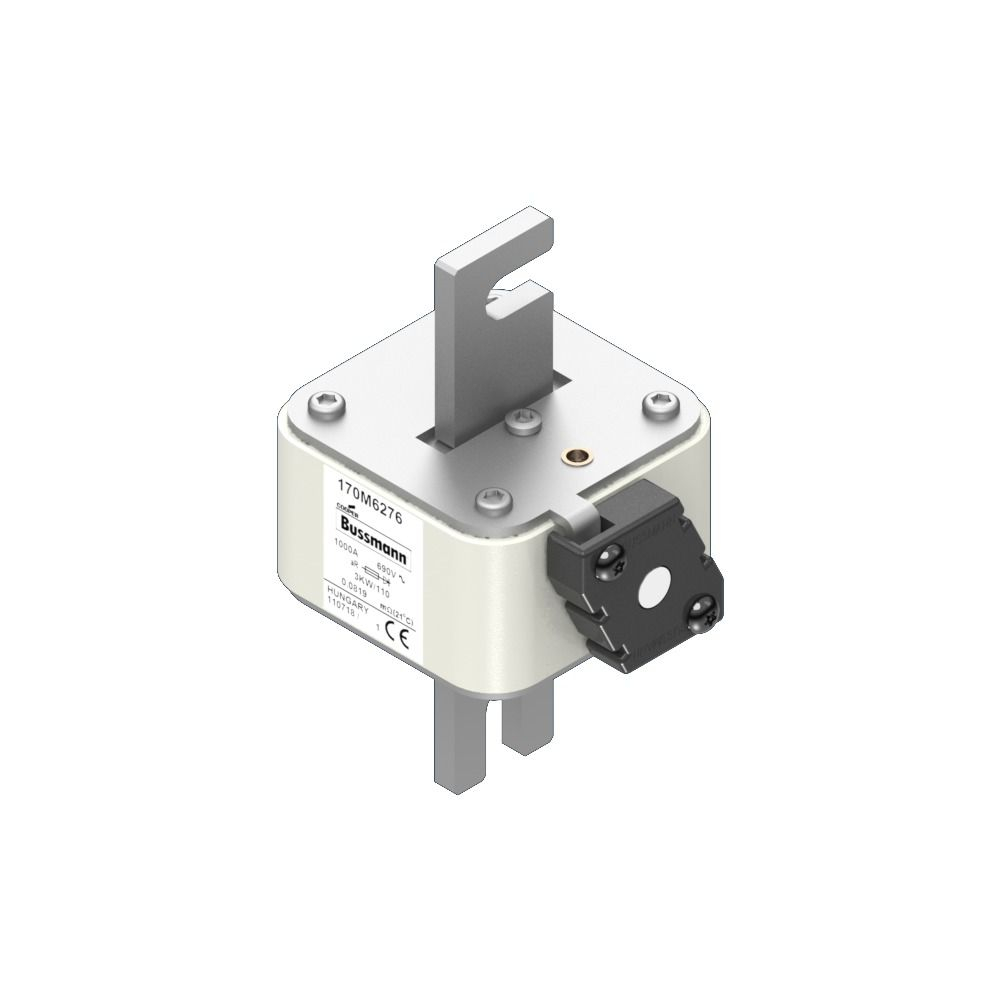

Eaton Bussmann Series High Speed Square Body Fuse(170M6276),bussmann

$98.10
$125.00
-$26.90
Quantity

Description

  • Estimated Lead Time : 1 - 10 Working days.

  • Manufacturer : Bussmann

  • Part Number : 170M6276

  • Product Name : Eaton Bussmann Series High Speed Square Body Fuse

  • Type : Fuse

  • Application : semiconductor protection

  • Amperage Rating : 1000 A

  • Breaking capacity : 200 kA

  • Fuse indicator : Centre fuse status indicator

  • Insulated metal gripping lugs (IMGL) : No

  • Utilization category : aR (accompanied semiconductor protection)

  • Voltage type : AC

  • Fuse size : 3

  • Rated voltage AC : 690 V

  • Center-to-center distance of connections : 180 mm

  • Current type : AC

  • Mounting dimension : M10

  • Class : Class gR

  • Watt losses : 125 W

  • Fuse shape : Square body, slotted center bolted tags

  • Color : None

  • Interrupt rating : 200 kAIC

  • Construction size : 3

  • Packaging type : Standard

  • Voltage rating : 690 V

  • Fuse type : Bolted tag

  • Fuse system (according to IEC 60269) : Other

  • Product Length/Depth : 90 mm

  • Product Height : 74 mm

  • Product Width : 160 mm

  • Product Weight : 0.001 g

  • Shipping Weight : 1 Kg
