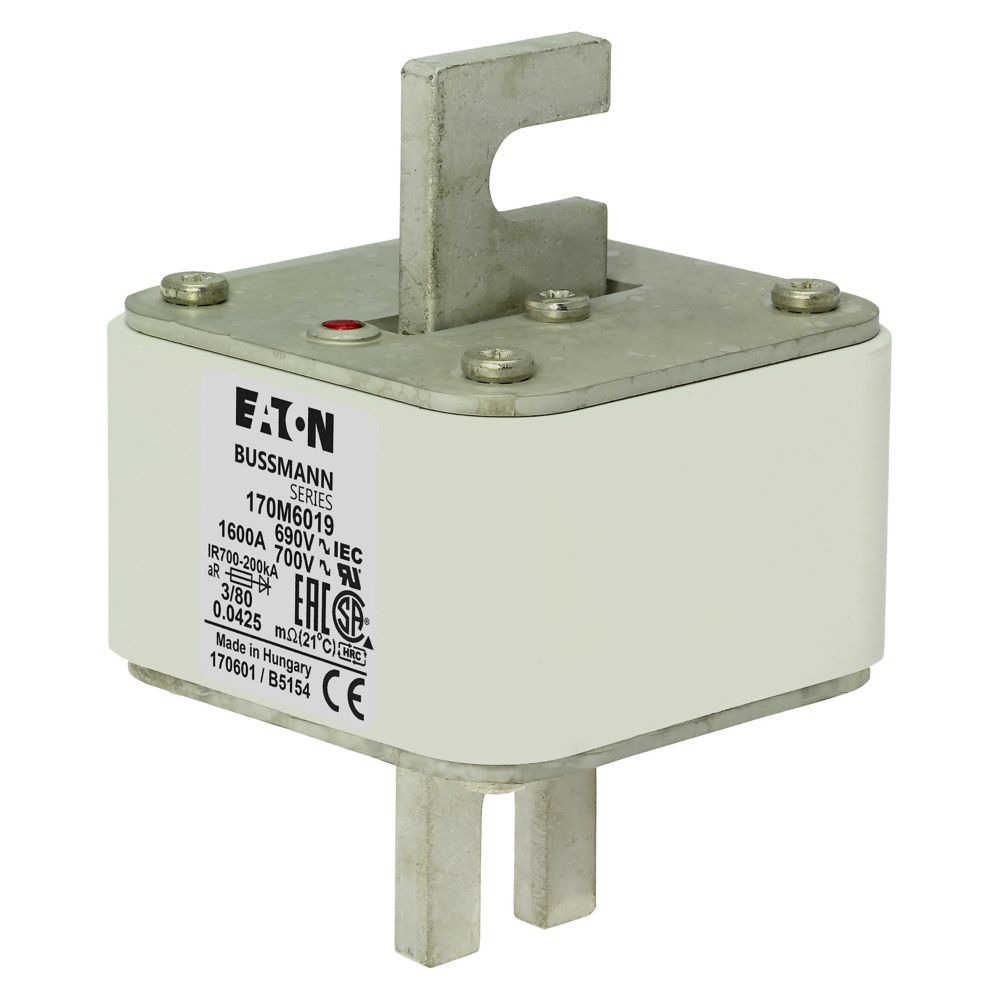

Eaton Bussmann Series High Speed Square Body Fuse(170M6019),bussmann

$81.00
$104.00
-$23.00
Quantity

Description

  • Estimated Lead Time : 1 - 10 Working days.

  • Manufacturer : Bussmann

  • Part Number : 170M6019

  • Product Name : Eaton Bussmann Series High Speed Square Body Fuse

  • Model Code : FUSE 1600A 690V 3/80 AR UC

  • Type : Fuse

  • Application : Semiconductor, DC Common bus, DC drives, power converters/rectifiers

  • Amperage Rating : 1600 A

  • Breaking capacity : 200 kA

  • Fuse indicator : Top fuse status indicator

  • Insulated metal gripping lugs (IMGL) : No

  • Utilization category : aR (accompanied semiconductor protection)

  • Voltage type : AC

  • Fuse size : 3

  • Rated voltage AC : 690 V

  • Center-to-center distance of connections : 78 mm

  • Current type : AC

  • Mounting dimension : M10

  • Class : Class aR

  • Clearing (I2T) : 3900000 at 660 V

  • Watt losses : 160 W

  • Clearing loss : 160

  • Fuse shape : Square body, slotted center bolted tags

  • Pre arc (I2T) : 580000

  • Color : None

  • Interrupt rating : 200 kAIC

  • Connection : Blade end x blade end

  • Construction size : 3

  • Packaging type : Standard

  • Voltage rating : 690 V (IEC), 700 V (UL)

  • Fuse type : DIN 43653 | /80 Visual indicator | Bolted tag

  • Fuse system (according to IEC 60269) : Other

  • Product Length/Depth : 168 mm

  • Product Height : 76 mm

  • Product Width : 95 mm

  • Product Weight : 938 g

  • Shipping Weight : 2 Kg
