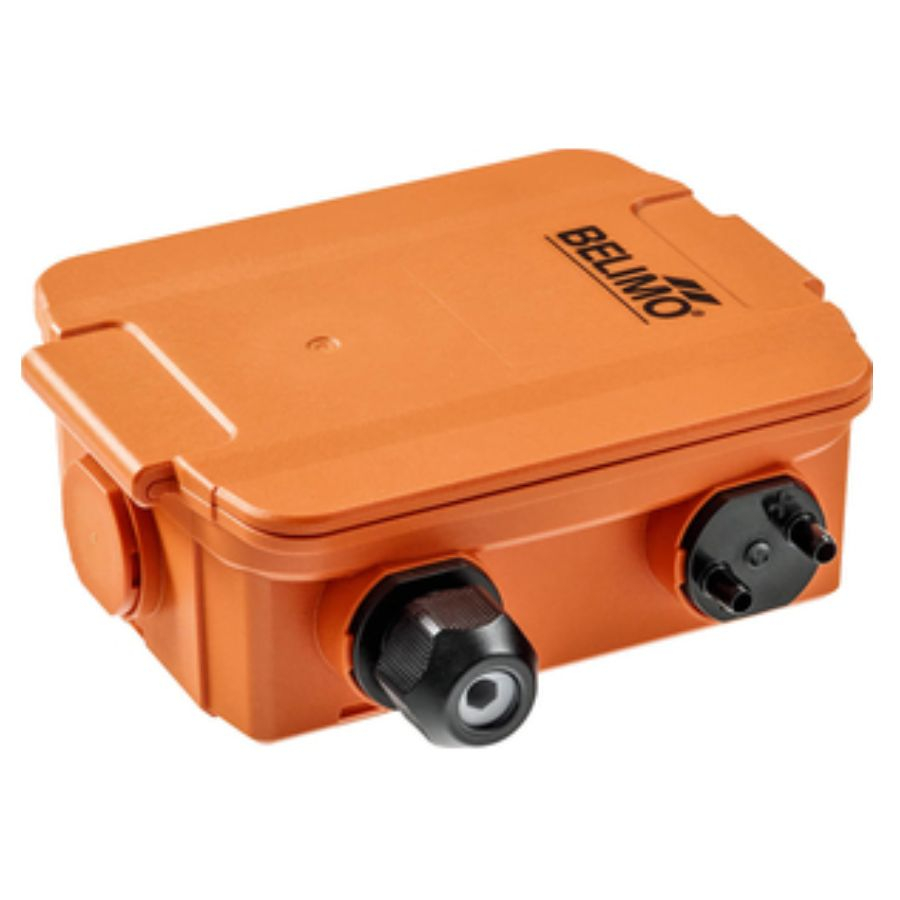

Duct Sensors (Air)(22ADP-184),belimo

$156.60
$200.00
-$43.40
Quantity

Description

  • Estimated Lead Time: 1 - 10 Working days.

  • Manufacturer: Belimo

  • Product Number: 22ADP-184

  • Product Type: Duct Sensors (Air)

  • Voltage AC/DC: AC/DC 24 V

  • Electrical connection: Terminals

  • Measured values: Differential pressure

  • Output signal:

    • 0...5 V

    • 0...10 V

    • 4...20 mA

  • Measuring range pressure: -100...2500 Pa

  • Measuring range pressure: -0.4...10 inch WC

  • Output Voltage [Range]: 1 x 0...5 V, 0...10 V, min. resistance 10 kΩ

  • Output Current [Range]: 1x 4...20 mA, max. resistance 500 Ω

  • Output signal active note: Output 0...5/10 V selectable with switch

  • Weight: 0.38 kg

  • Shipping Weight: 2 kg
