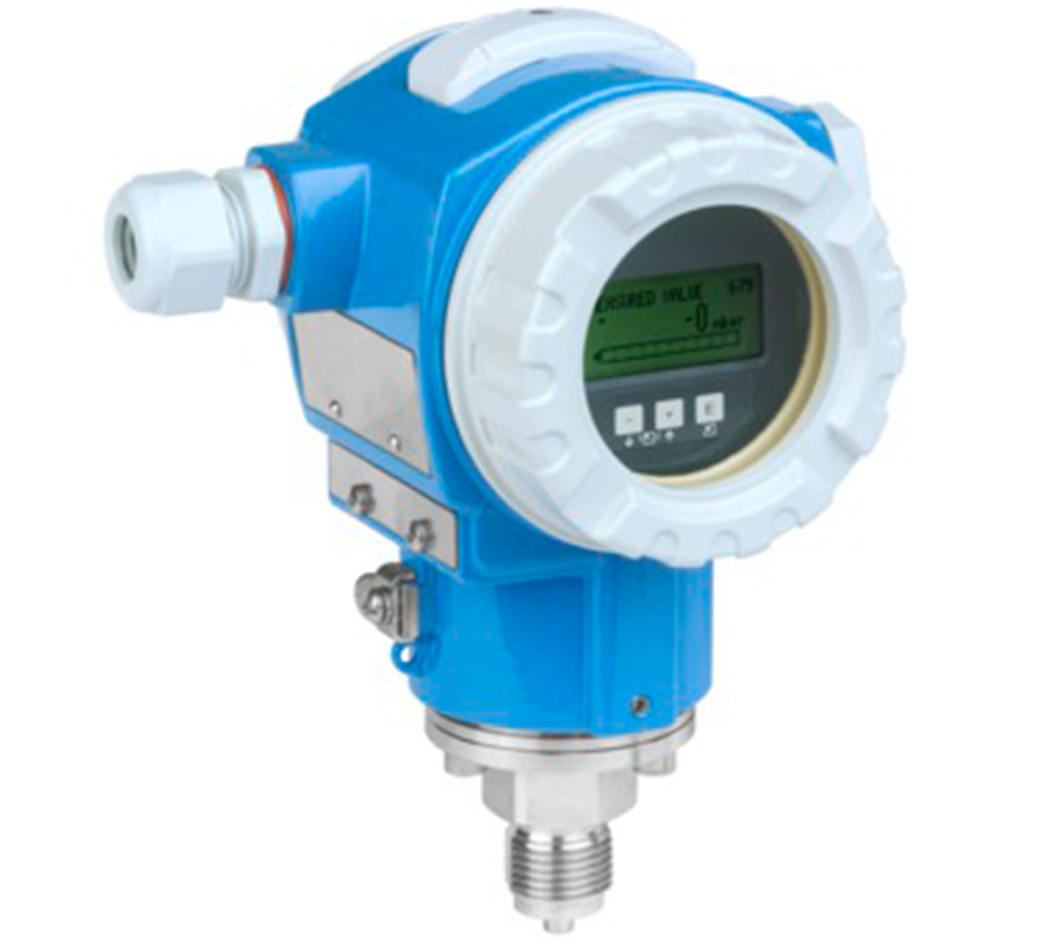

Digital pressure transmitter with welded metal sensor for measurement in gases, steam or liquids(PMP71-AAA-1S21-RHAA-U),endress+hauser

$1,677.60
$2,144.00
-$466.40
Quantity

Description

  • Estimated Lead Time: 4-6 Weeks

  • Manufacturer: Endress+Hauser

  • PMP71-AAA-1S21-RHAA-U

  • Approval : A-For non-hazardous areas

  • Output : Operation:A-4 to 20 mA HART, operation outside, LCD

  • Housing : Cable entry; Protection:A-Aluminum T14 housing, optional display on the side, IP 66/67/NEMA 4X/ 6P, Gland M 20x1.5

  • Sensor range : Sensor over pressure limit (= OPL):1S
    Sensors for gauge pressure
    Measurement limits: –100 % (–1 bar) to +100 % of sensor nominal value
    Sensor rated value (URL) : 40 bar/4 MPa/600 psi g
    OPL (over pressure limit) : 160 bar/16 MPa/2400 psi g

  • Calibration : Unit: 2-Sensor range; kPa/MPa

  • Material of the process isolating diaphragm: 1-AISI 316L

  • Process connection : Material: RH-Thread ANSI 1/2 FNPT, AISI 316L (CRN)

  • Fill fluid : A-Silicone oil

  • Additional option 1 : A-Not selected

  • Additional option 2 : U-Mounting bracket for wall/pipe, AISI 304

  • Shipping Weight : 3 Kg
