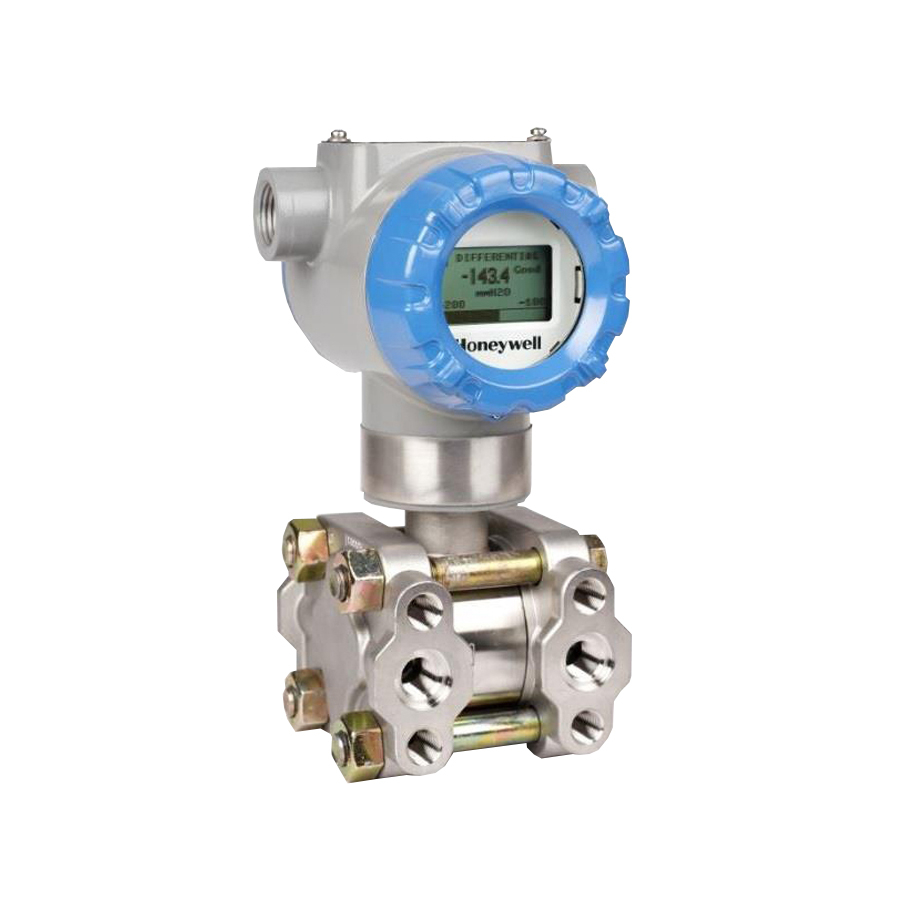

Differential Pressure Transmitter(STD720-E1HN4AS-1-C-ADC-11C-B-21A6-F10000),Honeywell

$12,312.00
$15,732.00
-$3,420.00
Quantity
Sku : STD720-E1HN4AS-1-C-ADC-11C-B-21A6-F10000
Weight : 3.8kg

Description

  • Estimated Lead Time : Usually ships in 1 - 10 working days.
  • Manufacturer : Honeywell
  • Product No. : STD720-E1HN4AS-1-C-ADC-11C-B-21A6-F100
  • Product type : Differential Pressure Transmitter
  • Measurement Range : STD720 =
    URL : 400/(1000)
    LRL : -400/(-1000)
    Max Span : 400/(1000)
    Min Span : 4.0 (10)
    Units : " H2O (mbar)
  • Process Wetted Heads & Diaphragm Materials : E = 316 Stainless Steel & 316L Stainless Steel
  • Fill Fluid : 1 = Silicone Oil 200
  • Process Connection : H = 1/2" NPT female, Materials to Match Head & Head Bolt Materials Selections
  • Bolt/Nut Materials : N = Grade 660 (NACE A286) with NACE 304 SS Nuts
  • Vent/Drain Type/Location : 4 =
    Head type : Dual Ended
    Vent type : Standard Vent
    Location : End
    Vent material : Matches Head Material
  • Gasket Material : A = Teflon® or PTFE (Glass Filled)
  • Static Pressure : S = Standard Static Pressure - 4500 psig (315 bar)
  • Head/Connect Orientation : 1 = Standard/High Side Left, Low Side Right2 / Std Head Orientation
  • Approvals : C = ATEX Explosion proof, Intrinsically Safe & Non-incendive
  • Electronic Housing Material & Connection Type : A =
    Material : Polyester Powder Coated Aluminum
    Connection : 1/2 NPT
    Lightning Protection : None
  • Output/Protocol : D = 4-20mA dc (Analog Output), DE Protocol
  • Customer Interface Selections : C =
    Indicator : Basic
    Ext Zero, Span & Config Buttons : yes
    Languages : English
  • Application Software : 1 = Standard Diagnostics
  • Output Limit,Failsafe & Write Protect Settings : 1 =
    Write Protect : Disabled
    Fail Mode : High > 21.0mAdc
    High & Low Output Limits : Honeywell Std (3.8 - 20.8 mAdc)
  • General Configuration : C = Custom Configuration (Unit Data Required from customer)
  • Accuracy and Calibration : B =
    Accuracy : Standard
    Calibrated Range : Custom (Unit Data Required)
    Calibration Qty : Single Calibration
  • Mounting Bracket : 2 = Angle Bracket (Bracket Type) , 304 SS (Material)
  • Customer Tag : 1 = One Wired Stainless Steel Tag (Up to 4 lines 26 char/line)
  • Unassembled Conduit Plugs & Adapters : A6 = 1/2 NPT 316 SS Certified Conduit Plug
  • Certifications & Warranty : F1 = Calibration Test Report & Certificate of Conformance (F3399)
  • Factory : 0000= Factory Identification
  • Weight : 3.8 Kg
  • Shipping weight : 8 Kg
