Description
-
Estimated Lead Time : 10 - 12 weeks.
-
Manufacturer : Yokogawa
-
Product No. : EJX110A-EMS4G-924DJ/KU21/N4/T13
-

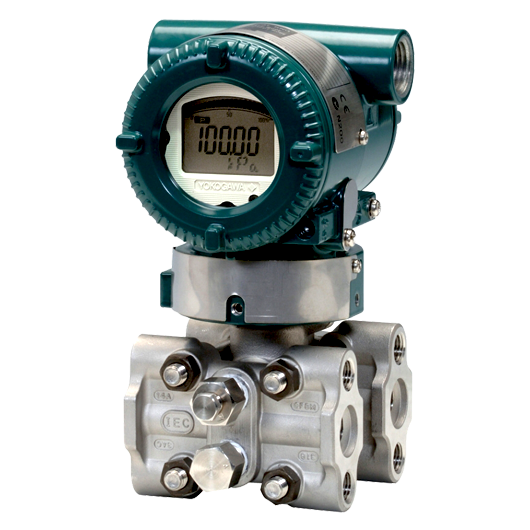

Product Type : Differential Pressure Transmitter
-
Output signal : E = 4 to 20 mA DC with digital communication (HART 5 protocol)
-
Measurement span (capsule) : M = 0.5 to 100 kPa (2 to 400 inH2O)
-
Wetted parts material : S = Cover flange and process connector ASTM CF-8M *1, Capsule Hastelloy C-276 *2 (Diaphragm)F316L SST, 316L SST (Others), Capsule gasket Teflon-coated 316L SST, Vent/Drain plug 316 SST
-
Process connections : 4 = with 1/2 NPT female process connector
-
Bolts and nuts material : G = 316L SST
-
Installation : 9 = Horizontal piping and left side high pressure
-
Amplifier housing : 2 = ASTM CF-8M stainless steel
-
Electrical connection : 4 = M20 female, two electrical connections without blind plugs
-
Integral indicator : D = Digital indicator
-
Mounting bracket : J = 16 SST 2-inch pipe mounting, flat type (for horizontal piping)
-
KU21
-
Wired tag plate : N4 = 316 SST tag plate wired onto transmitter
-
Pressure test/ Leak test certificate : T13 = Test Pressure: 25 MPa(3600 psi), Nitrogen(N2) Gas, Retention time: one minute
-
Weight : 4.3 Kg
-
Shipping Weight : 8 Kg
