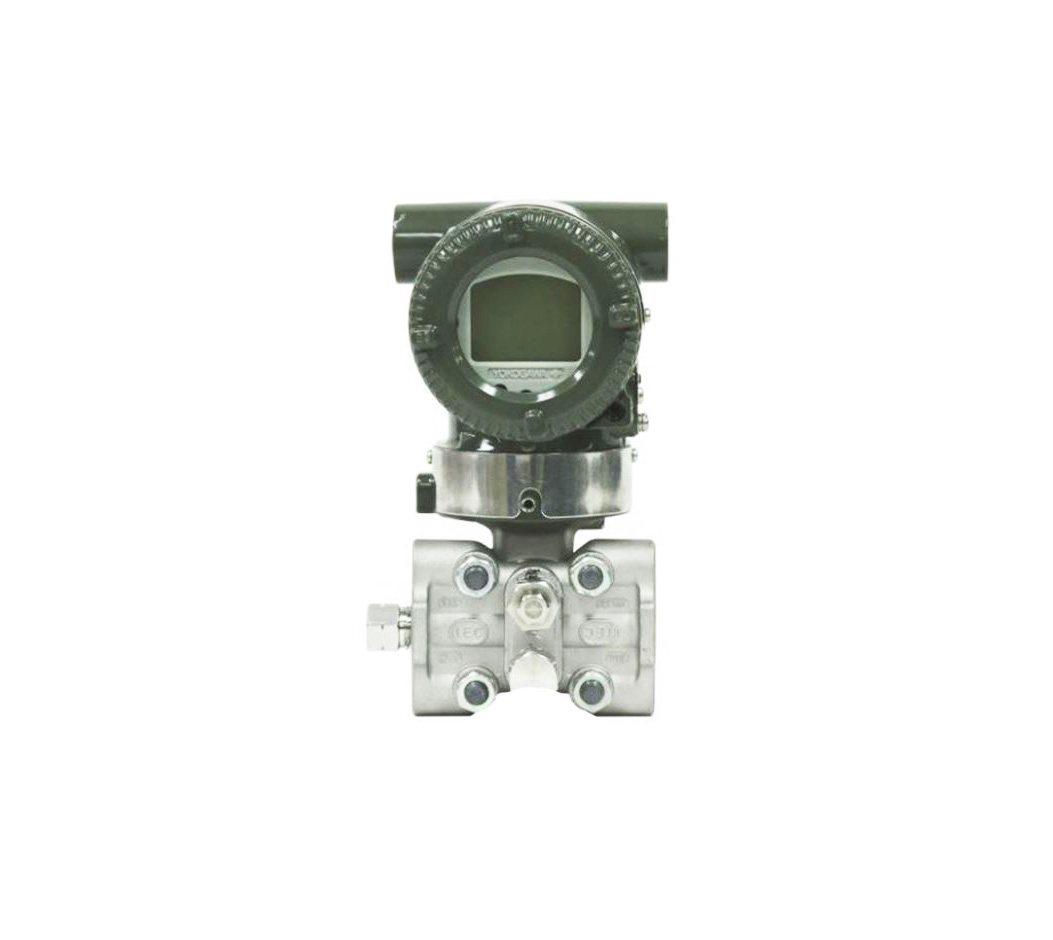

Differential Pressure Transmitter(EJA110A-DLS4A-37DC/KF2/D3/Z),Yokogawa

$655.20
$837.20
-$182.00
Quantity

Description

  • Estimated Lead Time : 2 - 4 weeks.

  • Manufacturer : Yokogawa

  • Product No. : EJA110A-DLS4A-37DC/KF2/D3/Z

  • Product Type : Differential Pressure Transmitter

  • Output Signal : D = 4 to 20 mA DC with digital communication (BRAIN protocol)

  • Measurement span(capsule) : L = 0.5 to 10 kPa {50 to 1000 mmH2O} {2 to 40 inH2O} {5 to 100 mbar}

  • Wetted parts material : S

    • Body : SCS14A

    • Capsule : SUS316L

    • Vent plug : SUS316

  • Process connections : 4 = with 1/2 NPT female process connector

  • Bolts and nuts materiaL : A = SCM435, Maximum working pressure : 16 MPa {160 kgf/cm2}

  • Installation : 3 = Vertical impulse piping type, right side high pressure, process connector downside

  • Electrical connection : 7 = 1/2 NPT female, two electrical connections and a blind plug

  • Integral indicator : D = Digital indicator

  • Mounting bracket : C = SECC Carbon steel 2-inch pipe mounting (L type)

  • Factory Mutual (FM) : KF2

  • Calibration units : D3 = bar calibration (bar unit)

  • Z

  • Weight : 3.9 Kg

  • Shipping Weight : 8 Kg
