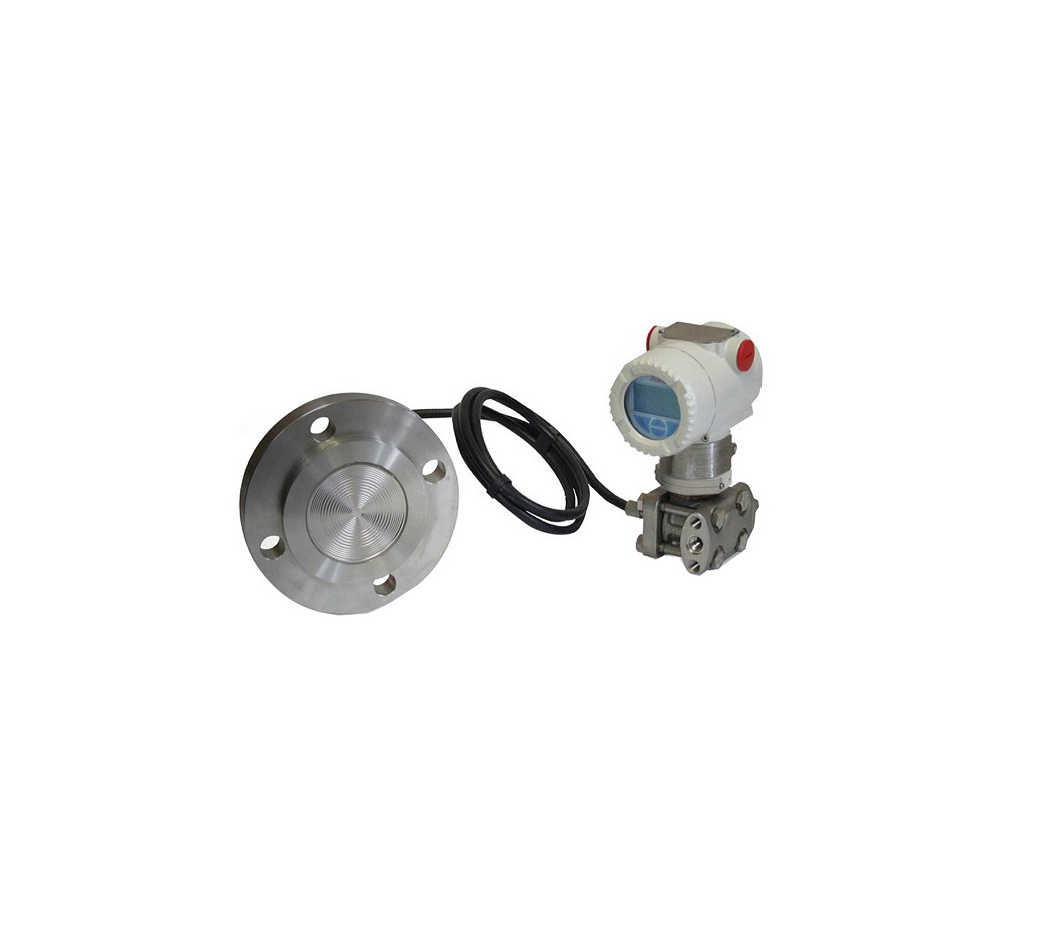

Differential Pressure Transmitter With Remote Seal(266DRH.F.S.R.R.R.B.1.E2.L1.B2.I1.C1.C5.H3),

$2,097.90
$2,681.00
-$583.10
Quantity
Sku : 266DRH.F.S.R.R.R.B.1.E2.L1.B2.I1.C1.C5.H3
Weight : 6kg

Description

  • Estimated Lead Time : 6 - 8 weeks.

  • Manufacturer : ABB

  • Product No. : 266DRH.F.S.R.R.R.B.1.E2.L1.B2.I1.C1.C5.H3

  • Product type : Differential Pressure Transmitter With Remote Seal

  • 266DRH - Base Model : Differential Pressure Transmitter with remote seal

  • F - SENSOR Span limits : 267 and 16000 kPa 2.67 and 160 bar 38.7 and 2320 psi

  • S : Use Code

  • R - Diaphragm material / Fill fluid (wetted parts) : AISI 316 L ss Silicone oil

  • R - Process flanges/adapters material and connection (wetted parts) : AISI 316 L ss for two seals construction

  • R - Bolts/Gasket (wetted parts) : AISI 316 ss (NACE) without gaskets for two seals construction – (MWP = 16 MPa)

  • B - Housing material and electrical connection  : Aluminium alloy ( barrel version) M20 x 1.5 (CM 20)

  • 1 - Output/Additional options : HART digital communication and 4 to 20 mA

  • E2 - Hazardous area certifications : ATEX Explosion Proof Group II Category 1/2 G Ex d IIC T6 and Group II Category 1/2 D Ex tD A21 IP67 T85 °C

  • L1 - Integral LCD : Digital LCD integral display

  • B2 - Mounting bracket (shape and material) : For pipe mounting - AISI 316 L ss (Not suitable for AISI housing)

  • I1 - Additional tag plate : Supplemental wired-on stainless steel plate

  • C1 - Certificates (up to 2 different selections allowed) : Inspection certificate EN 10204–3.1 of calibration (9-point)

  • C5 - Certificates (up to 2 different selections allowed) : Inspection certificate EN 10204–3.1 of the pressure test

  • H3 - Material traceability : Inspection certificate EN 10204–3.1 of process wetted parts

  • Shipping weight : 7 Kg
