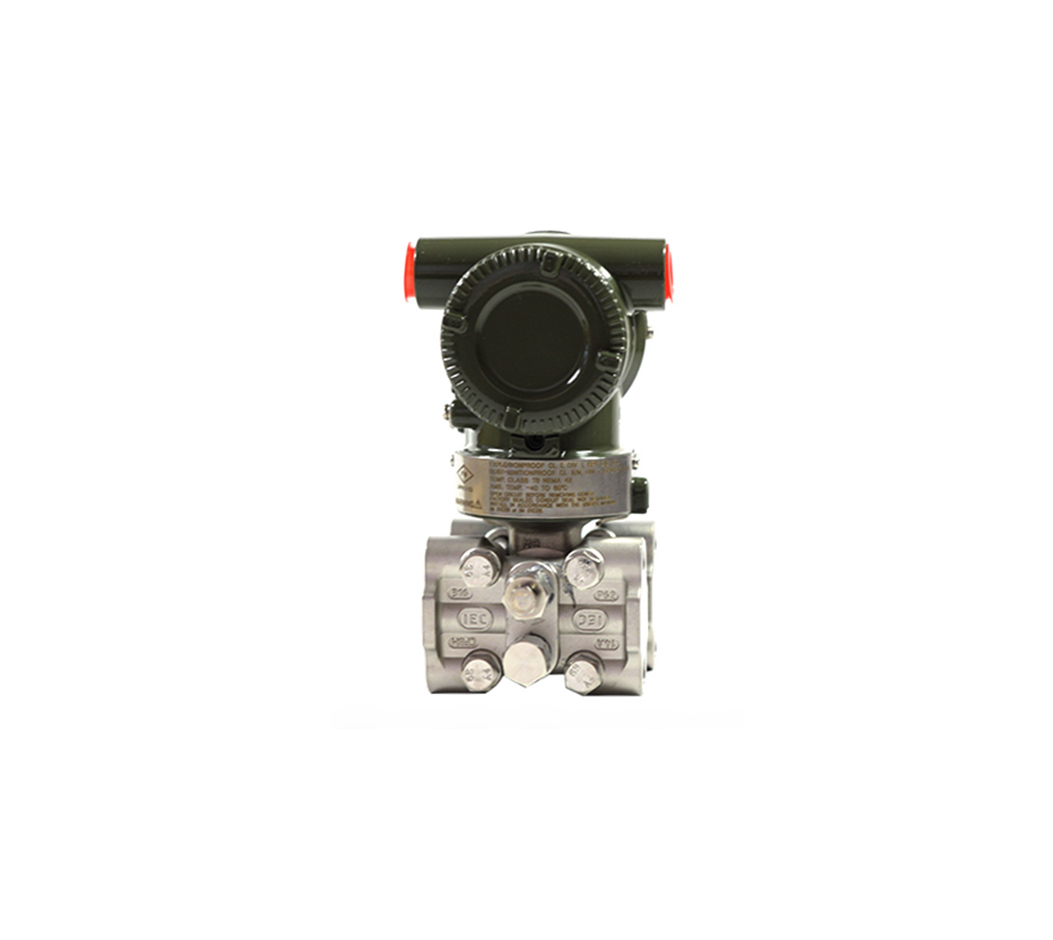

Diaphragm Sealed Differential Pressure Transmitter(EJA118E-JMSCG-924DN-WA42C2SW00-AA25/KS21),Yokogawa

$2,520.00
$3,220.00
-$700.00
Quantity
Sku : EJA118E-JMSCG-924DN-WA42C2SW00-AA25/KS21
Weight : 17.6kg

Description

  • Estimated Lead Time : 10 - 14 Weeks

  • Manufacturer : Yokogawa

  • Product No. : EJA118E-JMSCG-924DN-WA42C2SW00-AA25/KS21

  • Product type : Diaphragm Sealed Differential Pressure Transmitter

  • Output signal : J = 4 to 20 mA DC with digital communication (HART 5/HART 7 protocol)

  • Measurement span (capsule) : M = 2.5 to 100 kPa (10 to 400 inH2O)

  • S : always S

  • C : always C

  • Coverflange bolts and nuts material : G = 316L SST

  • Installation : 9 = Horizontal piping type and left side high pressure

  • Amplifier housing : 2 = ASTM CF-8M stainless steel

  • Electrical connection : 4 = M20 female, two electrical connections without blind plugs

  • Integral indicator : D = Digital indicator

  • Mounting bracket : N = None

  • Process connection style : W = Flush type

  • Flange rating : A4 = ANSI class 600

  • Process connection size (Process flange size) : 2 = 2-inch (50 mm)

  • Flange material : C = 316 SST

  • Gasket contact surface : 2 = Flat (no serration)

  • Wetted parts material : SW = 316L SST [Diaphragm], 316L SST [Others]

  • Flushing connection ring : 0 = None

  • Extension : 0 = None

  • Fill fluid : A = For general use (silicone oil), –10 to 250°C Process temperature,–10 to 60°C Ambient temperature

  • Capillary connection : A = Side of diaphragm seal unit

  • 2 : Always 2

  • Capillary length : 5 = 5 m

  • ATEX : KS21 = ATEX Intrinsically safe Approval

  • Weight : 17.6 Kg

  • Shipping Weight : 23 Kg
