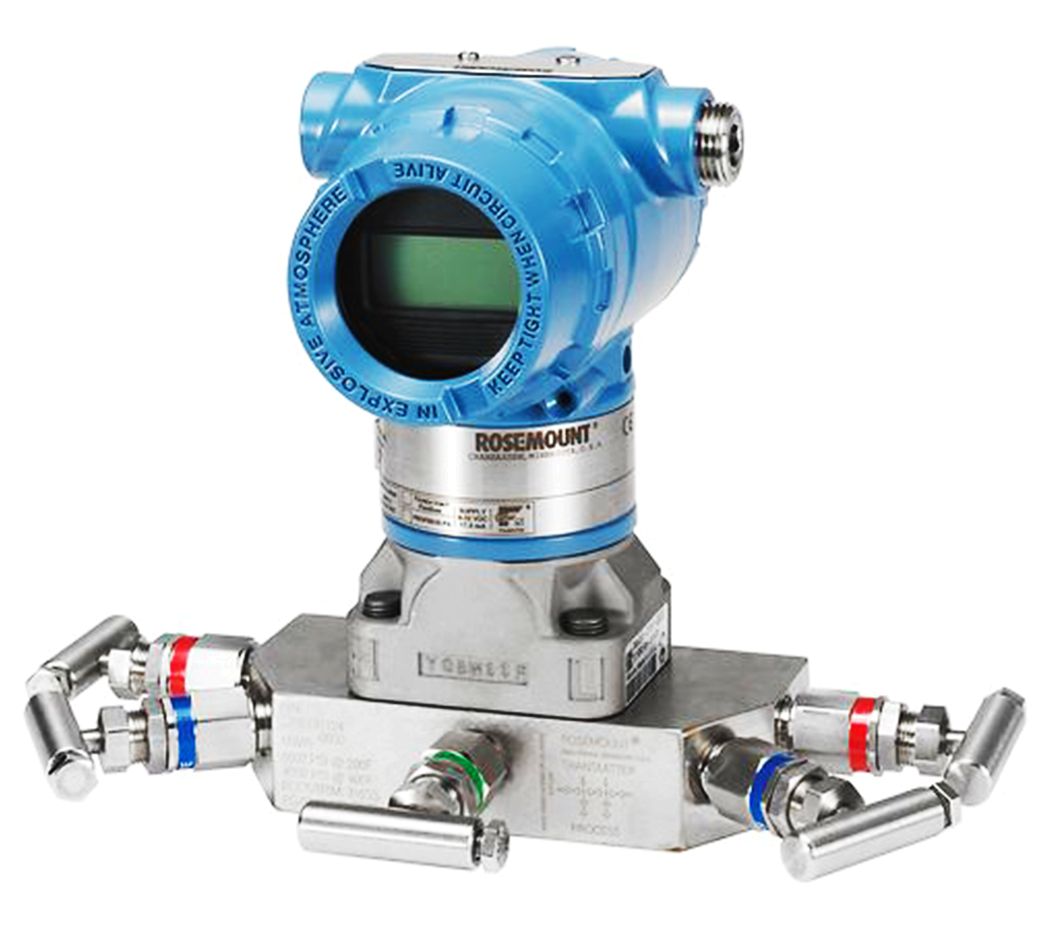

Coplanar Pressure Transmitter(3051CD0A2A1AM5B1H2L4Q4),rosemount

$1,197.90
$1,531.00
-$333.10
Quantity

Description

  • Estimated Lead Time : Usually ships in 1 - 10 working days.
  • Manufacturer : Rosemount
  • Product No. : 3051CD0A2A1AM5B1H2L4Q4
  • Product type : Coplanar Pressure Transmitter
  • Measurement type : D = Differential
  • Pressure range : 0 = –3 to 3 inH2O (-7,46 to 7,46 mbar)
  • Transmitter output : A = 4–20 mA with digital signal based on HART®Protocol
  • Materials of construction : 2 = Process flange type Coplanar, Flange material SST , Drain/vent SST
  • O-ring : A = Glass-filled PTFE
  • Sensor fill fluid : 1 = Silicone
  • Housing material , Conduit entry size : A = Aluminum , ½–14 NPT
  • Display and interface options : M5 = LCD display with LOI
  • Mounting bracket : B1 = Traditional flange bracket, CS, 2-in. pipe
  • Alternate flange : H2 = Traditional flange, 316 SST, SST drain/vent
  • Bolting material : L4 = Austenitic 316 SST
  • Calibration certificate : Q4 = Calibration Certificatebolts
  • Shipping weight : 5Kg
