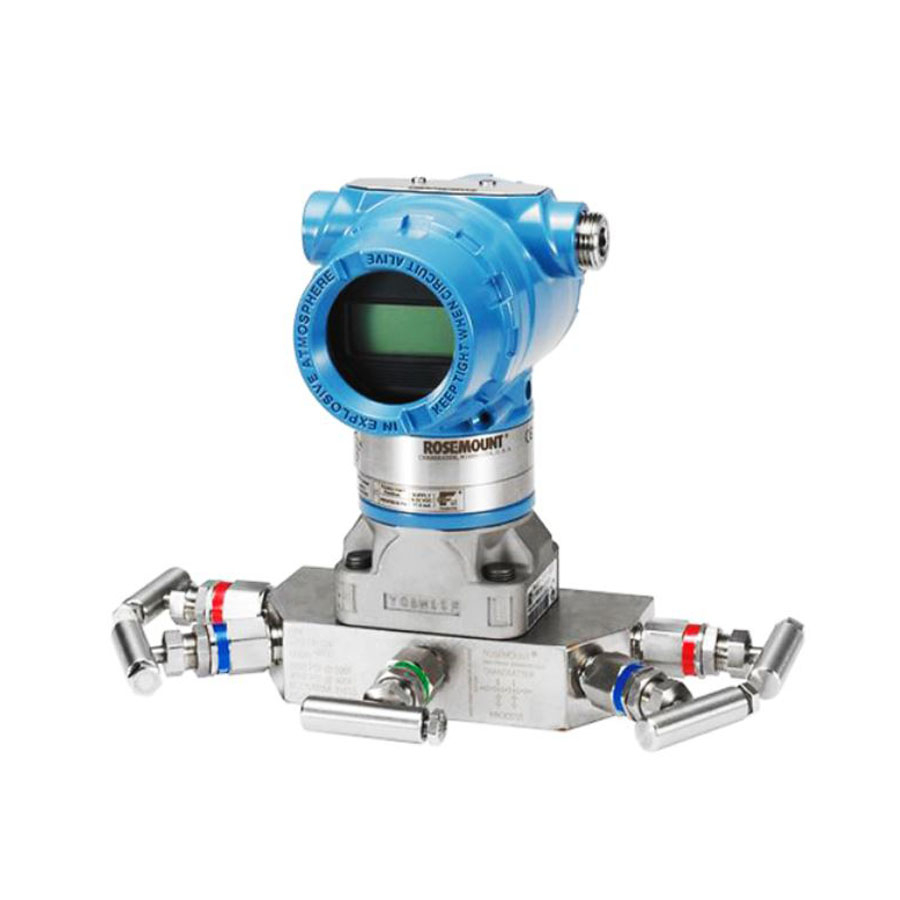

Coplanar Pressure Transmitter + Integral Manifold(3051CD4A02A1BS5I1M5Q4Q8+0305RT32A11B1L4DF),rosemount

$1,156.50
$1,478.00
-$321.50
Quantity
Sku : 3051CD4A02A1BS5I1M5Q4Q8+0305RT32A11B1L4DF
Weight : 2.1kg

Description

  • Estimated Lead Time : 6 - 8 weeks.
  • Manufacturer : Rosemount
  • Product No. : 3051CD4A02A1BS5I1M5Q4Q8+0305RT32A11B1L4DF
  • Product Type : Coplanar Pressure Transmitter + Integral Manifold
  • 3051CD4A02A1BS5I1M5Q4Q8 : Coplanar Pressure Transmitter
  • Model : 3051C = Coplanar pressure transmitter
  • Measurement type : D = Differential
  • Pressure range : 4 = –300 to 300 psi (–20.68 to 20.68 bar)
  • Transmitter output : A = 4–20 mA with digital signal based on HART® Protocol
  • Materials of construction : 0 = Alternate process connection
  • Isolating diaphragm : 2 = 316L SST
  • O-ring : A = Glass-filled PTFE
  • Sensor fill fluid : 1 = Silicone
  • Housing material : B =  Aluminum, M20 x 1.5 Conduit entry size
  • Manifold assembly : S5 = Assemble to Rosemount 305 Integral Manifold
  • Product certifications : I1 = ATEX Intrinsic Safety and Dust
  • Display and interface options : M5 = LCD display
  • Calibration certificate : Q4 = Calibration certificate
  • Material traceability certification : Q8 = Material traceability certification per EN 10204 3.1
  • Weight : 2.7 Kg
  • 0305RT32A11B1L4DF : Integral Manifold
  • Model : 0305 = Integral manifold
  • Manufacturer : R = Rosemount
  • Manifold style : T = Traditional
  • Manifold type : 3 = Three-valve
  • Materials of construction : 2 = 316 SST/316L SST Body, 316 SST Bonnet, 316 SST Stem and tip/ball
  • Process connection style : A = ¼–18 NPT female
  • Packing material : 1 = PTFE
  • Valve seat : 1 = Integral
  • Mounting brackets : B1 = Bracket for 2-in. (50.8 mm) pipe mounting, CS bolts
  • Bolt materials : L4 = Austenitic 316 SST bolts
  • Adapters : DF = ½–14 NPT female flange adapter
  • Weight : 2.1 Kg
  • Shipping Weight : 7 Kg
