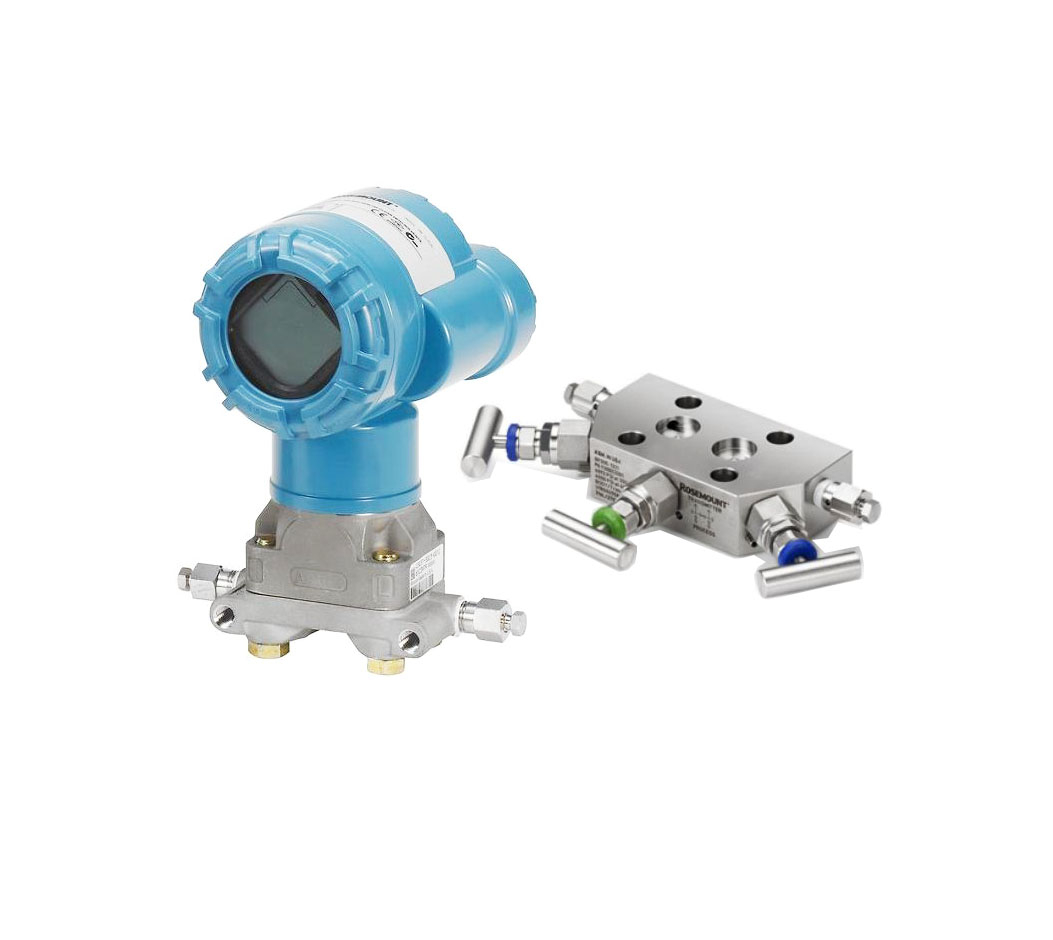

Coplanar Pressure Transmitter+Integral Manifold(2051CD1A02A1BS5P1Q4+0305RC52B11B4),rosemount

$1,200.60
$1,534.00
-$333.40
Quantity

Description

  • Estimated Lead Time : 6 - 8 weeks.
  • Manufacturer : Rosemount
  • Product No. : 2051CD1A02A1BS5P1Q4+0305RC52B11B4
  • Product type : Coplanar Pressure Transmitter+Integral Manifold
  • *2051CD1A02A1BS5P1Q4
  • Measurement type : D = Differential
  • Pressure range : 1 = Rosemount 2051CD –25 to 25 inH2O (–62,2 to 62,2 mbar)
  • Transmitter output : A = 4–20 mA with digital signal based on HART Protocol
  • Materials of construction : 0 = Alternate process connection
  • Isolating diaphragm : 2 = 316L SST
  • O-ring : A = Glass-filled PTFE
  • Sensor fill fluid : 1 = Silicone
  • Housing material , Conduit entry size : B = Aluminum , M20 1.5
  • Manifold assembly : S5 = Assemble to Rosemount 305 Integral Manifold
  • Pressure testing : P1 = Hydrostatic testing with certificate
  • Calibration certification : Q4 = Calibration certificate
  • *0305RC52B11B4
  • Manufacturer : R = Rosemount
  • Manifold style : C = Coplanar
  • Manifold type : 5 = 5-valve
  • Materials of construction : 2 = Body 316 SST,Bonnet 316 SST,Stem and Tip / Ball 316 SST
  • Process connection : B = 1/2–14 NPT (Coplanar manifold style only)
  • Packing materal : 1 = Teflon
  • Valve seat : 1 = Integral
  • Traditional options : B1 = Bracket for 2-in. pipe mounting, CS bolts
  • Shipping weight : 15Kg
