Description
- Estimated Lead Time : 6 - 8 weeks.
- Manufacturer : Rosemount
- Product No : 3051CD3A22A1AS2B4E8+1199DDB65ARTW40CAA5+1199DDB65ARTW40CAA5

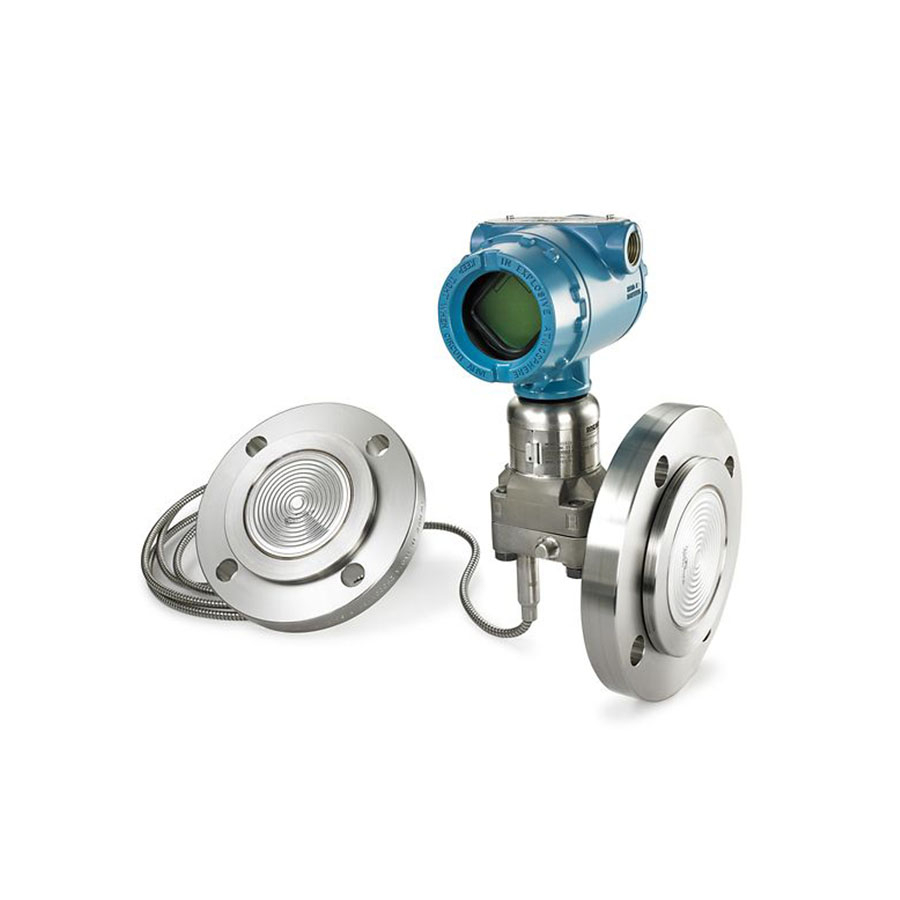

- Product Type : Coplanar Pressure Transmitter + Diaphragm Seal Systems
- 3051CD3A22A1AS2B4E8 : Coplanar Pressure Transmitter
-
Model : 3051C - Coplanar pressure transmitter
-
Pressure Type : D - Differential
-
Pressure Range : 3 - –1000 to 1000 inH2O (–2.48 to 2.48 bar)
-
Transmitter Output : A - 4–20 mA with digital signal based on HART® Protocol
-
Materials of Construction : 2
-
-
Transmitter Flange Type - Coplanar
-
Flange Material - SST
-
Drain/Vent - SST
-
-
Isolating diaphragm : 2 - 316L SST
-
O-Ring : A - Glass-filled PTFE
-
Sensor Fill Fluid : 1 - Silicone
-
Housing Material : A - Aluminum (Conduit entry size : ½–14 NPT)
-
Seal assemblies : S2 - Assemble to two Rosemount 1199 seals
-
Mounting bracket : B4 - Coplanar flange bracket, all SST, 2-in. (51 mm) pipe and panel
-
Product certifications : E8 - ATEX Flameproof and Dust Certification
-
Weight : 7 Kg
-
1199DDB65ARTW40CAA5 : Diaphragm Seal Systems
-
Model : 1199 - Seal systems
-
Connection type : D - Welded-repairable, Seal system is two seal system, Seal location at balanced system - same seal on low and high side
-
Seal fill fluid : D - Silicone 200, 0.93 Specific gravity at 77 °F (25 °C), –49 to 401 °F (–45 to 205 °C) Temperature limits.
-
Seal connection type/capillary ID, description : B - 0.03-in. (0,711 mm) ID
-
Direct mount connection type : 65 - 36.1 ft. (11,0 m)
-
Fill Fluid : A - Syltherm XLT
-
Process connection style : RTW - Threaded (standard thread is female, for male select Option code 9)
-
Process Connection Size : 4 - 3/4–14 NPT, N/A ( EN 10226-1), N/A (ISO 228-1)
-
Maximum Working Pressure (Flange Rating) : 0 - Flange not supplied; seal rated to Class 2500 or flange rating
-
Diaphragm and Wetted Parts Material : CA - 316L SST
-
Flushing Connection Ring Material (Lower Housing) : A - 316L SST
-
Flushing Options : 5 - None
-
Weight : 10 Kg
-
Shipping Weight : 18 Kg
