Description
-
Estimated Lead Time : 8 - 10 weeks.
-
Manufacturer : Rosemount
-
Product No. : 3051CD3A03A1KM5K6P1S5Q4Q8Q15 + 0305RC52B11B4L4SG
-

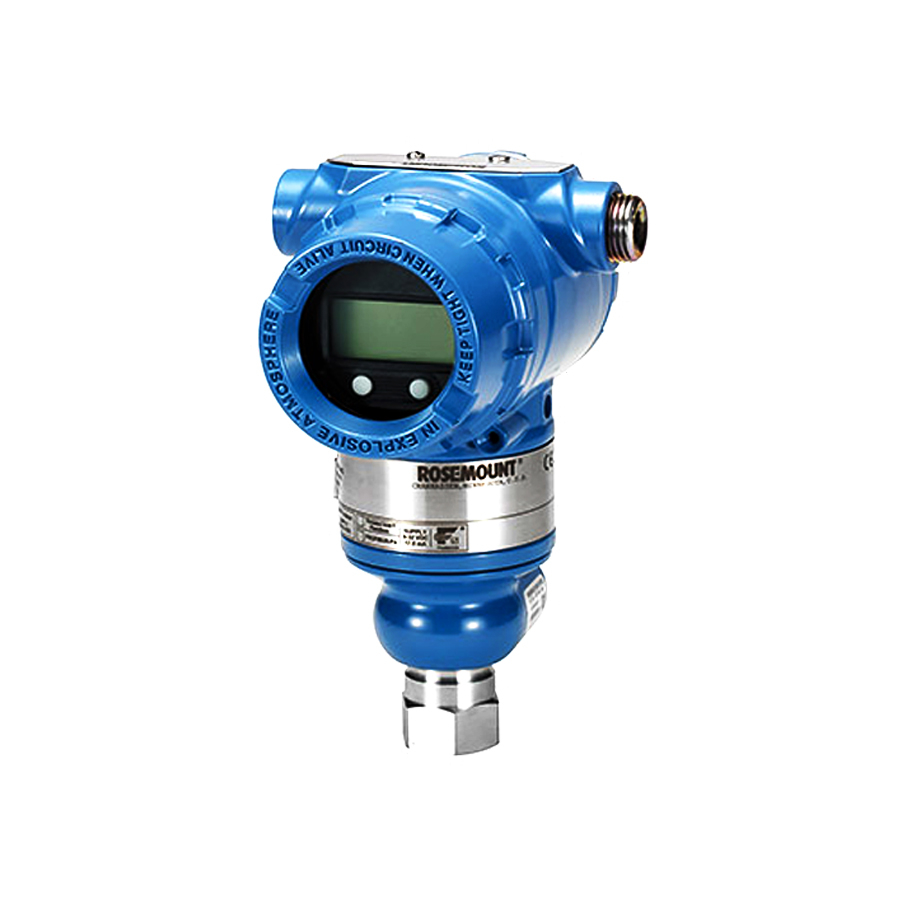

Product Type : Coplanar Pressure Transmitter + 305 Integral Manifold
-
3051CD3A03A1KM5K6P1S5Q4Q8Q15 : Coplanar Pressure Transmitter
-
Model : 3051C - Coplanar pressure transmitter
-
Pressure type : D - Differential
-
Pressure range : 3 - –1000 to 1000 inH2O
(–2.48 to 2.48 bar) -
Transmitter output : A - 4–20 mA with digital signal based on HART® Protocol
-
Materials of construction : 0 - Alternate process connection
-
Isolating diaphragm : 3 - Alloy C-276
-
O-Ring : A - Glass-filled PTFE
-
Sensor fill fluid : 1 - Silicone
-
Housing material : K - SST, M20 x 1.5
-
Display and interface options : M5 - LCD display
-
Product certifications : K6 - Canada and ATEX Explosion-proof, Intrinsically Safe, and Division 2 (combination of C6, E8, and I1)
-
Pressure testing : P1 - Hydrostatic testing with certificate
-
Manifold assembly : S5 - Assemble to Rosemount 305 Integral Manifold
-
Calibration certification : Q4 - Calibration certificate
-
Material traceability certification : Q8 - Material traceability certification per EN 10204 3.1
-
NACE certificate : Q15 - Certificate of Compliance to NACE MR0175/ISO 15156 for wetted materials
-
0305RC52B11B4L4SG : 305 Integral Manifold
-
Model : 0305 - Integral manifold
-
Manufacturer : R - Rosemount
-
Manifold style : C - Coplanar
-
Manifold type : 5 - Five-valve
-
Material of construction : 2
-
Body : 316/316L SST
-
Bonnet : 316 SST
-
Stem and tip/ball : 316 SST
-
-
Process connection style : B - ½–14 NPT female
-
Packing material : 1 - PTFE
-
Valve seat : 1 - Integral
-
Mounting brackets : B4 - SST mounting bracket for 2-in. (50.8 mm) pipe mounting, 300 SST bolts
-
Bolt materials : L4 - Austenitic 316 SST bolts
-
Material recommendations for NACE : SG - Sour gas (meets NACE MR0175/ISO 15156, MR0103)
-
Shipping Weight : 12 Kg
