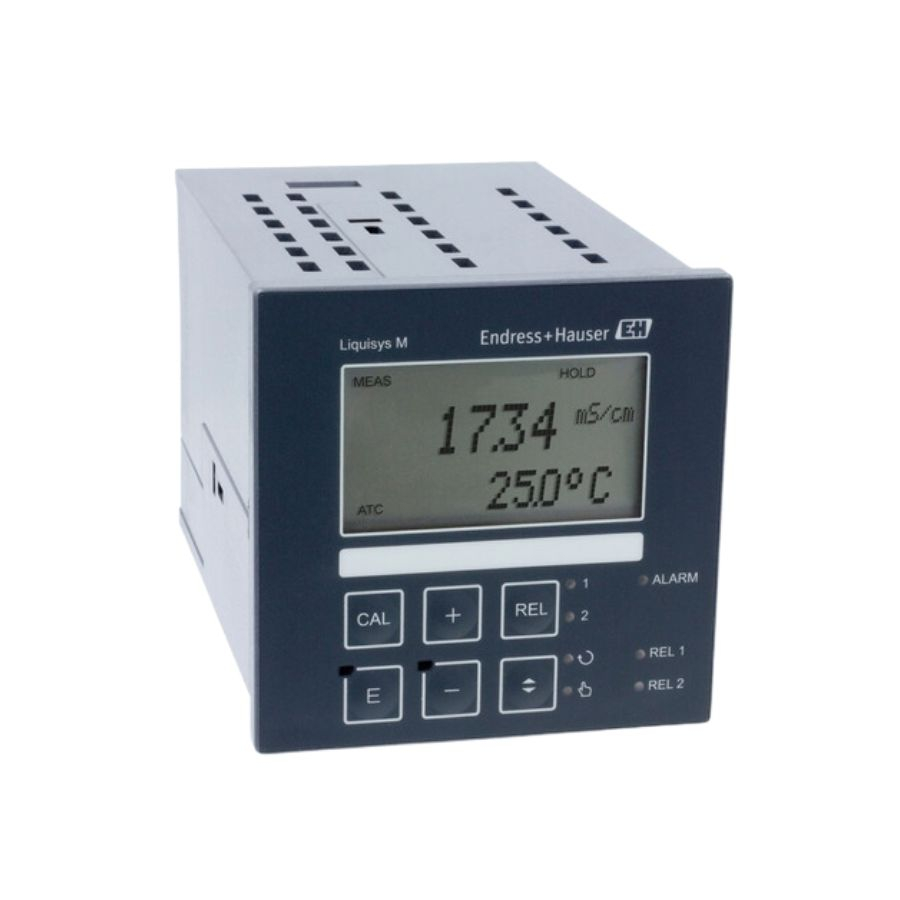

Conductivity Transmitter Liquisys CLM224(CLM253-CD0005),endress+hauser

$1,432.80
$1,831.00
-$398.20
Quantity

Description

  • Estimated Lead Time: 1 - 10 Working days.

  • Manufacturer: Endress+Hauser

  • Product Number: CLM253-CD0005

  • Product Type: Conductivity Transmitter Liquisys CLM224

  • Compact panel device for all industries

  • Liquisys CLM223 is a standard transmitter for all analog conductivity sensors.

  • It improves your operational safety thanks to continuous plausibility, process and sensor checks.

  • Select from numerous hardware and software modules, such as relays or fieldbus communication, to adapt it exactly to your measuring task.

  • This modularity also allows you to upgrade the transmitter at any time. A simple menu and calibration make configuration and operation fast and easy

  • Dimensions:

    • Panel mounted instrument: 96 x 96 x 145 mm (3.78 x 3.78 x 5.71 inches)

    • Installation depth: approx. 165 mm (6.50")

    • Field instrument: 247 x 170 x 115 mm (9.72 x 6.69 x 4.53 inches)

  • Weight:

    • Panel mounted instrument: max. 0.7 kg (1.5 lb)

    • Field instrument: max. 2.3 kg (5.1 lb)

  • Material:

    • Housing of panel mounted instrument: Polycarbonate

    • Field housing: ABS PC Fr

    • Front membrane: Polyester, UV-resistant

  • Terminals: Cross section max. 2.5 mm2

  • Shipping Weight: 4 Kg
