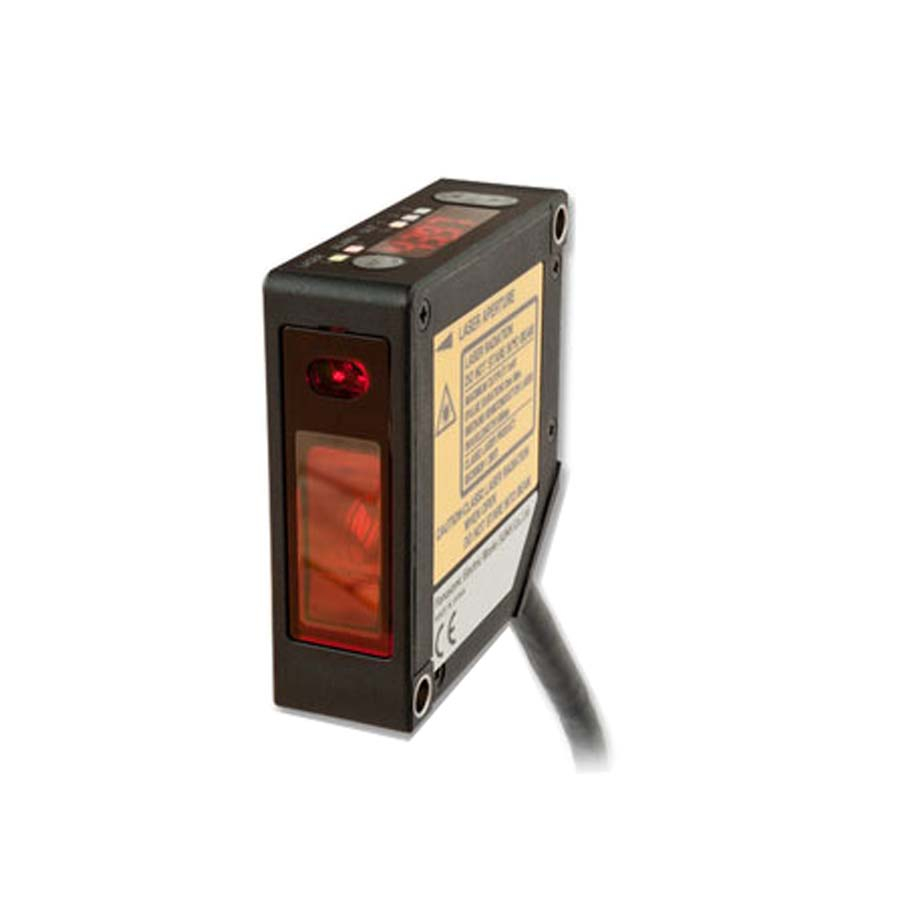

Compact Laser Displacement Sensor HL-G1 Series(HL-G112-S-J),panasonic

$794.70
$1,015.00
-$220.30
Quantity

Description

  • Estimated Lead Time : Usually ships in 1-10 working days.

  • Manufacturer : Panasonic

  • Product No. : HL-G112-S-J

  • Product Type : Compact Laser Displacement Sensor HL-G1 Series

  • Supply voltage : 24 VDC ±10% including ripple 0.5 V (P-P)

  • Current consumption : 100 mA max

  • Analog input

      Voltage : Output range: 0 to 10.5 V (normal), 11 V (at alarm)
      Current : Output range: 3.2 to 20.8 mA (normal), 21.6 mA (at alarm)
  • Output operation : Open when the output is ON

  • Indicator

      Laser radiation indicator : Green LED ON at laser radiation
      Alarm indicator : Orange LED ON when measurement is impossible as a result of insufficient or excessive light quantity
      Output indicator : Yellow LED
  • Measurement center distance : 120 mm

  • Material :

      Casing: PBT
      Front cover: Acrylic
      Cable: PVC
  • Breakdown voltage : 500 V AC for 1 minute

  • Operating condition : Free from corrosive gasses and excessive dust

  • Weight : 0.1 Kg

  • Shipping Weight : 1.5 Kg
