Description
Estimated Lead Time : 12 - 14 weeks.
Manufacturer : Endress+Hauser
Product No. : PMC51-AA12QA1FGJGVJJ

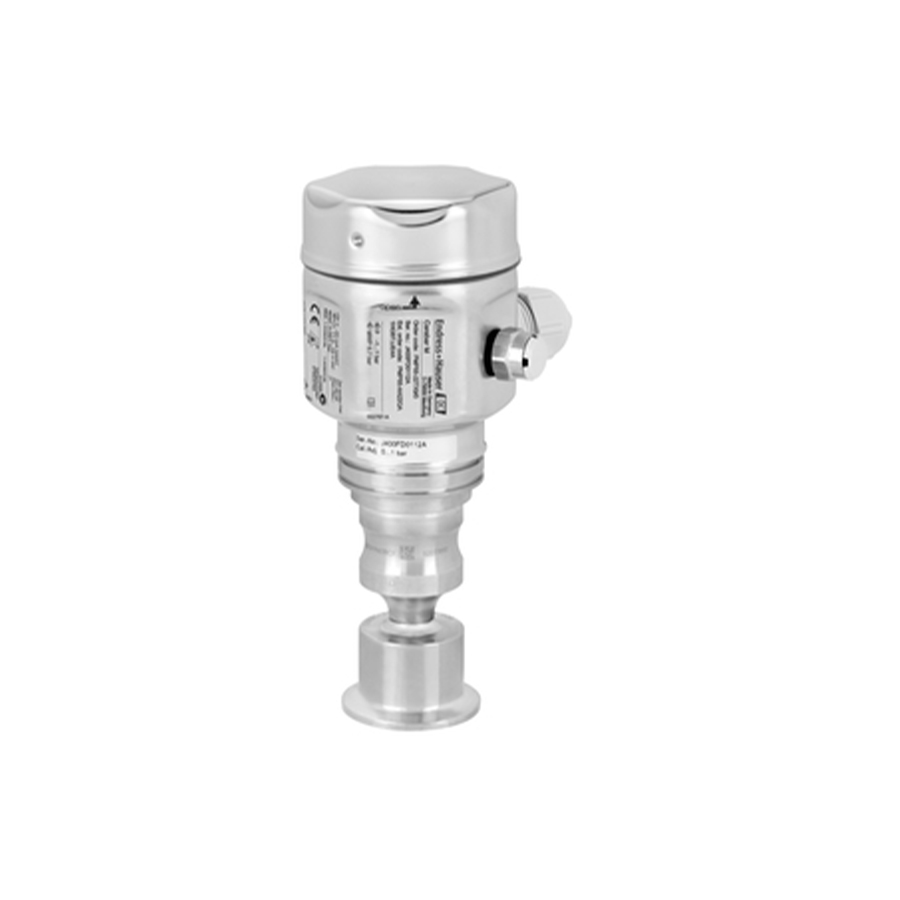

Product type : Cerabar M PMC51 Pressure Transmitter
Field of application
Gauge pressure and absolute pressure
Level
Process connections
Thread
EN flanges DN 25 – DN 80
ANSI flanges 1" – 4"
JIS flanges 50 A – 100 A
Flush-mounted hygienic connections
Ambient temperature range
Without LCD display : -40 to +85 °C (–40 to +185°F)
With LCD display : –20 to +70 °C (–4 to +158°F) (extended temperature application range (-40 to 85 °C (-40 to 185°F)) with restrictions in optical properties such as display speed and contrast)
Separate housing: –20 to +60 °C (–4 to +140°F)
Diaphragm seal systems depending on the version
OPL : Max. 60 bar (900 psi)
Supply voltage : 11.5 to 45 V DC
Output : 4 to 20 mA
Specialties
Metal-free measurement with PVDF connection
Special cleaning of the transmitter to remove paint-wetting substances, for use in paint shops
