Description

Estimated Lead Time : Estimated Lead Time : 4 - 6 weeks.
Manufacturer : ABB
Product no : 2CSM231255R0601

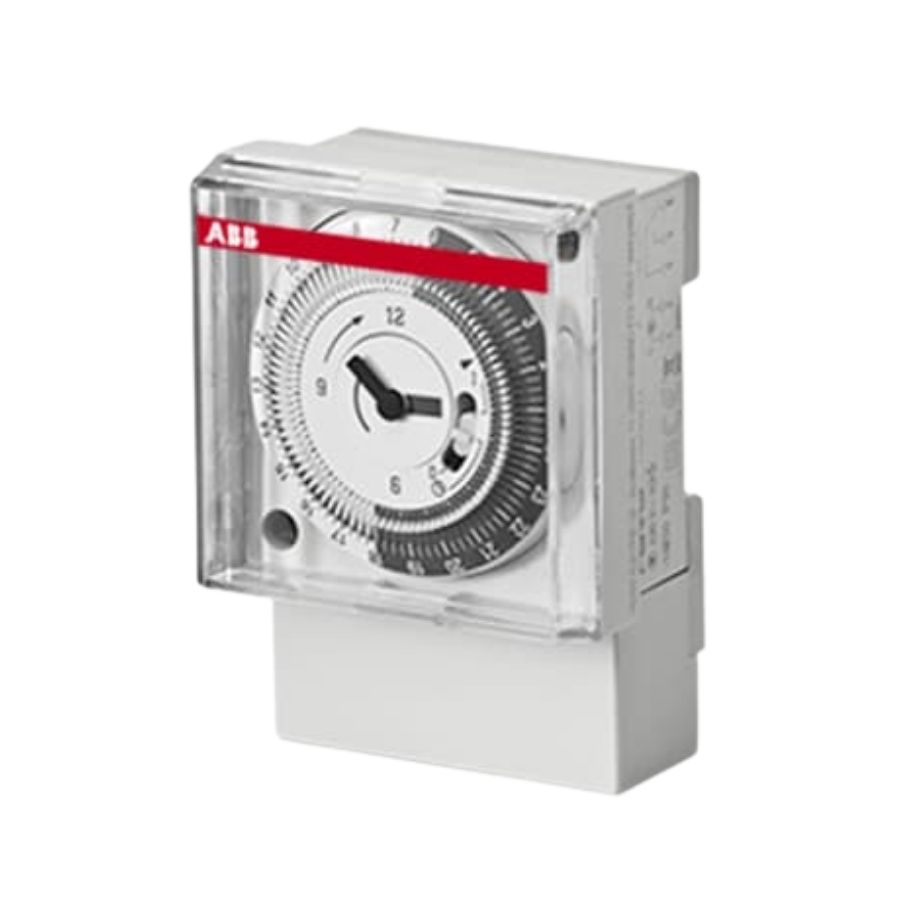

Product type : AT72e Electro-mechanical Time Switches
Rated voltage V: 230 AC ± 10%
Contact type: 1NO/NC
Inductive load A: 4
Rated frequency Hz: 50-60
Time base: quartz
Number of tappets: 96
Power consumption VA: 0.5
Max switching power W: 3500
Tightening torque Nm: 0.8
Terminals: with captive screws
Operating temperature °C: -10...+50
Storage temperature °C: -10...+50
Modules: 2
Reference Standards: EN 60730-1; EN 60730-2-7
Weight: 0.014 Kg
Shipping Weight: 1.5 kg
