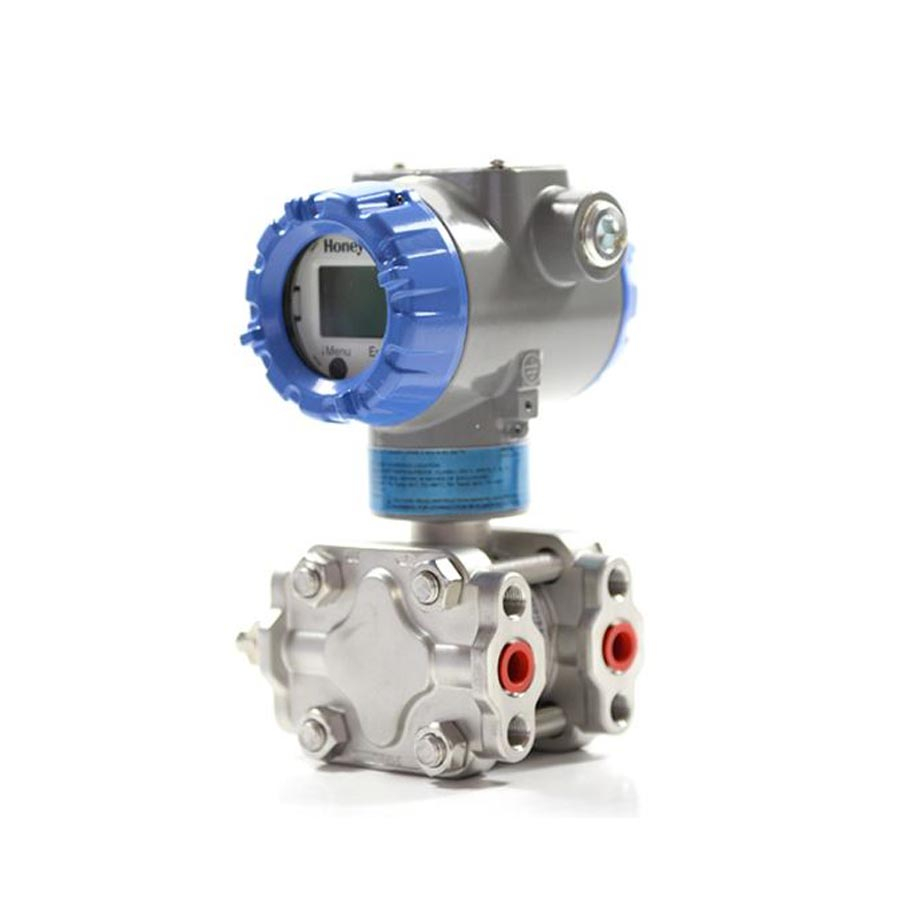

Absolute Pressure Transmitters(STA740-E1GC4A-1-A-ADB-11S-A-00A0-F1),honeywell

Estimated Lead Time : 10 -12 weeks.

Manufacturer : Honeywell

Product No. : STA740-E1GC4A-1-A-ADB-11S-A-00A0-F1

Product Type : Absolute Pressure Transmitters

Absolute Dual Head : STA740

• URL/Max Span : 500 (35)

• LRL : 0 (0)

• Min Span : 5 (.35)

• Units : psia (barA)

Process Head & Diaphragm Materials : E

• Process Head : 316 Stainless Steel

• Barrier Diaphragm Material : 316L SS

Fill Fluid : 1 = Silicone Oil 200

Process Connection : G

• Size/Type : 1/2" NPT (female)

• Material : Same as Process Head

Bolt/Nuts Materials : C = Carbon Steel

Vent/Drain Type/Location : 4

• Head Type : Dual Ended

• Vent Type : Std Vent

• Vent Location : End

• Vent Material : Matches Head Material

Gasket Materials : A = Teflon® or PTFE (Glass Filled)

Head/Connect Orientation : 1 = Standard, High Side Left, Low Side Right2 / Std Head Orientation

Approvals : A = Explosion proof, Intrinsically Safe, Non-incendive, & Dustproof

Electronic Housing Material & Connection Type : A

• Material : Polyester Powder Coated Aluminum

• Connection : 1/2 NPT

• Lightning Protection : None

Output/Protocol : D

• Analog Output : 4-20mA dc

• Digital Protocol : DE Protocol

Customer Interface Selections : B

• Indicator : Basic

• Ext Zero, Span & Config Buttons : None

• Languages : EN

App S/W : 1 = Standard Diagnostics

Output Limit, Failsafe & Write Protect Setting : 1

• Write Protect : Disabled

• Fail Mode : High> 21.0mAdc

• High & Low Output Limits : Honeywell Std (3.8 - 20.8 mAdc)

General Configuration : S = Factory Standard

Accuracy and Calibration : A

• Accuracy : Standard

• Calibrated Range : Factory Std

• Calibration Qty : Single Calibration

Mounting Bracket : 0

• Bracket Type : None

• Material : None

Customer Tag : 0 = No customer tag

Unassembled Conduit Plugs & Adapters : A0 = No Conduit Plugs or Adapters Required

Certifications & Warranty : F1 = Calibration Test Report & Certificate of Conformance

Shipping Weight : 6 Kg
