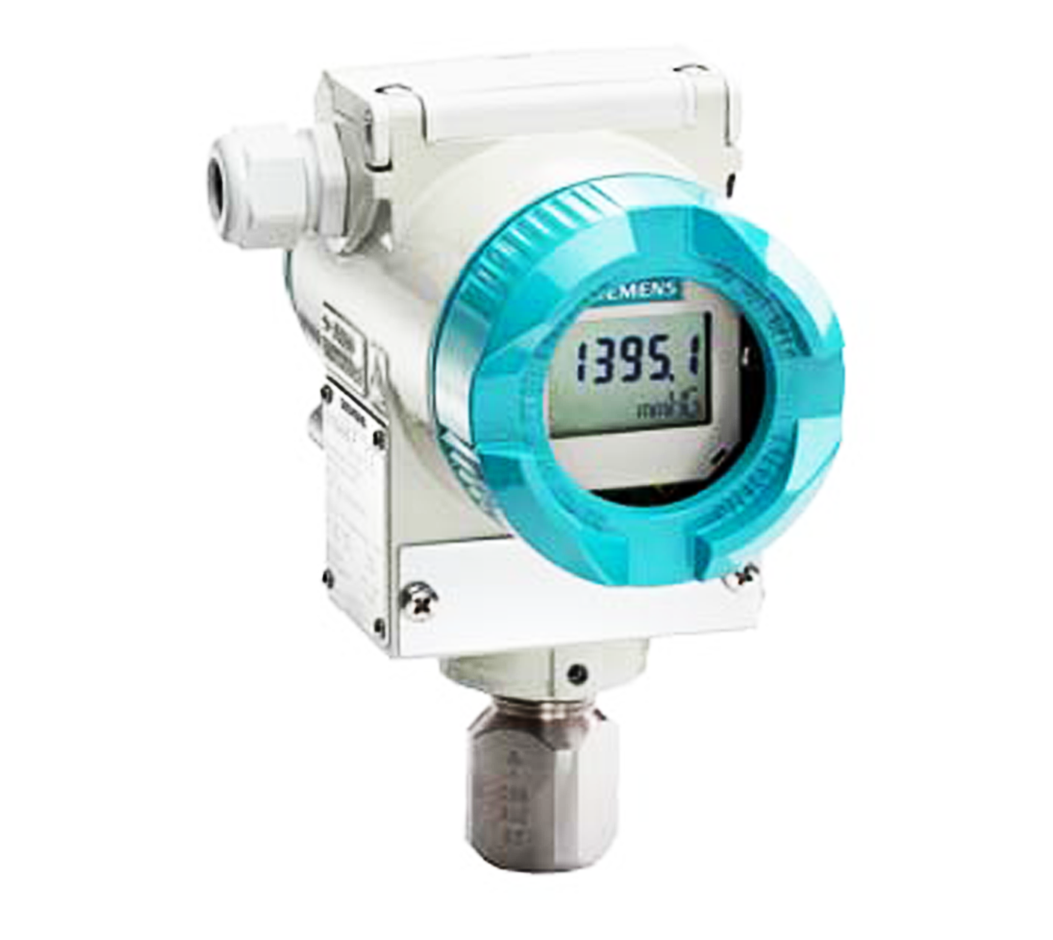

Absolute pressure, gauge construction, two-wire, series DSIII(7MF4233-1DA60-1AB7-ZB11+H03+Y01+Y15+Y21+C11),siemens

Estimated Lead Time : 6-8 Weeks

Manufacturer : Siemens

7MF4233-1DA60-1AB7-Z(B11+H03+Y01+Y15+Y21+C11)

7MF4233-Absolute pressure, gauge construction, two-wire, series DSIII

1-Measuring cell filling : Silicone oil , Measuring cell cleaning : Normal

D-Span : 3.3 inH2Oa To 100 inH2Oa , PN : 87 psi

A-Wetted parts materials
Seal diaphragm : Stainless steel
Process connection : Stainless steel

6-Process connection : Male thread ½-14 NPT

0-Non-wetted parts materials : Housing made of die-cast aluminium

1-Standard version

A-Explosion protection : Without

B-Electrical connection / cable entry: Screwed gland M20x1.5

7-Display : With customer-specific digital indicator (setting as specified, Order code "Y21" or required)

Z- Add "-Z" to order number and add short spec

B line: B11+H03+Y01+Y15+Y21+C11
B11-Labeling of the rating plate (instead of German):English
H03-Stainless steel process flanges for vertical active pressure lines
Y01-Measuring range to be set, specify in clear text: 0 to ... mbar, psi, kPa, Mpa, ... (27 characters maximum)
Y15-Tag number / description :(16 characters maximum) specify in clear text
Y21-Setting of pressure indicator in pressure units
Specify in plain text (standard setting: mA): Y21: mbar, bar, kPa, MPa, psi

Note: The following pressure units can be selected: bar, mbar, mm H2O*), inH2O*), ftH2O*),mmHG, inHG, psi, Pa, kPa, MPa, g/cm2,kg/cm2, Torr, ATM or % *) ref. temperature 20 °C

C11 : Manufacturer test certificate M according to DIN 55 350, Part 18, and according to ISO 8402

Weight (without options) with mounting flange without tube : Pressure series 7MF4233 about 3.3 lbs (1.5 kg)

Shipping Weight : 3 Kg
