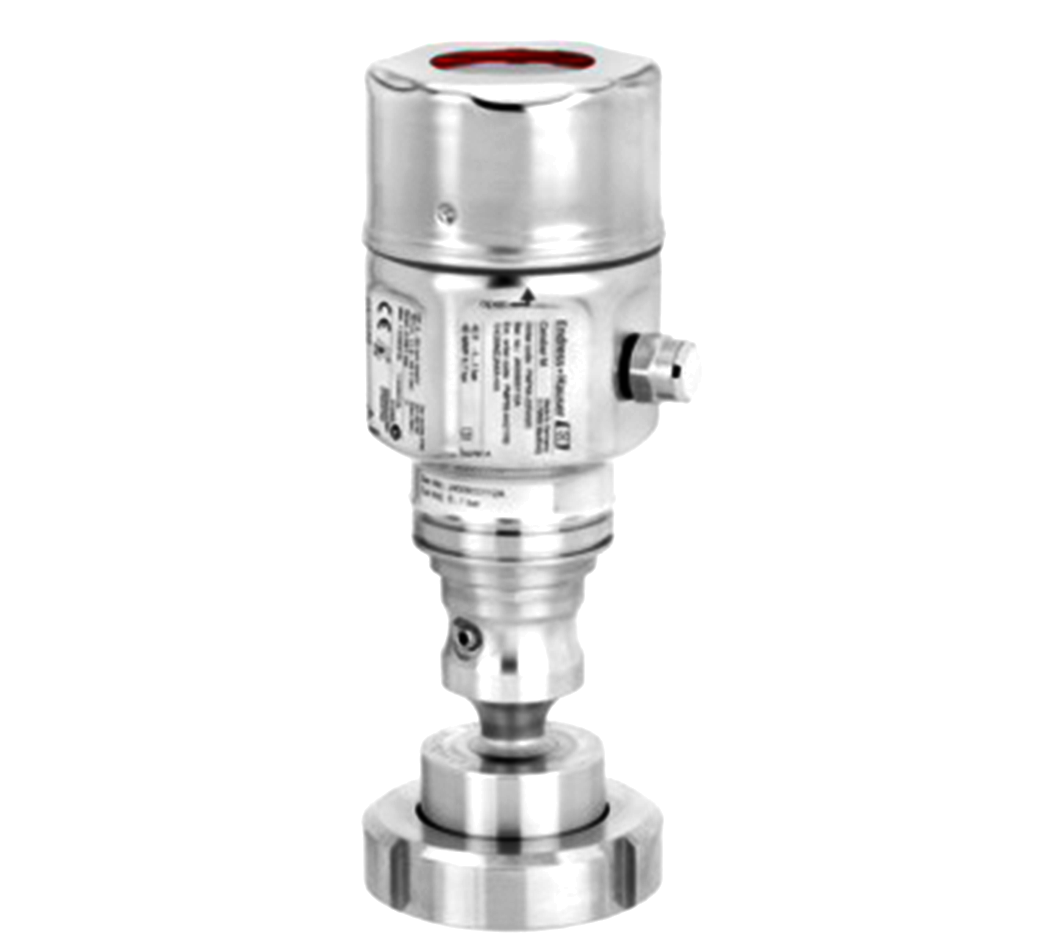

Absolute and gauge pressure Cerabar(PMP55AA12QA1MGJTJJA4A),endress+hauser

$1,613.70
$2,062.00
-$448.30
Quantity
Sku : PMP55AA12QA1MGJTJJA4A
Weight : 3.5kg

Description

  • Estimated Lead Time : 4-6 Weeks

  • Manufacturer : Endress+Hauser

  • PMP55AA12QA1MGJTJJA4A

  • metallic process isolating diaphragm for gauge pressure

  • Approval : AA : Non-hazardous area

  • Output : 1 : 4-20mA

  • Display, Operation : 2 : W/o LCD, push button on electronics

  • Housing : Q : F15 stainless steel hygiene

  • Electrical Connection : A : Gland M20, IP66/68 NEMA4X/6P

  • Sensor Range : 1M : 4bar/400kPa/60psi gauge, 40mH2O/133ftH2O overload: 28bar/ 2.8MPa/420psi

  • Reference Accurancy : G: Standard

  • Calibration; Unit : J: Customised pressure; see addition spec.

  • Process Connection : TJJ : Tri-Clamp ISO2852 DN38 (1-1/2"), 316L, DIN32676 DN40, EHEDG, 3A, ASME-BPE

  • Membrane Material : A: 316L

  • Fill Fluid: 4 : Vegerable oil FDA

  • Diaphragm Seal Connection : A : Direct

  • Compressibility factor 999

  • Low range value 0 bar

  • Upper range value 4.00000 bar

  • Min. low range value -1.03500 bar

  • Max. low range value 4.20000 bar

  • Min. upper range value -1.03500 bar

  • Max. upper range value 4.20000 bar

  • Span limit minimal 0.20000 bar

  • Span 4.00000 bar

  • Span limit maximal 5.20000 bar

  • Turndown error 20.00000 Turndown information 10.00000 Min. upper range value 2 0.40000 bar

  • Maximum working pressure(MWP) 18.70000 bar

  • Overpressure single side 28.00000 bar

  • Max. pressure 28.00000 bar

  • Low range value -1 bar Upper range value 4 bar

  • 2nd value display none Dampings 2 Maximum working pressure (MWP) 40.00000 bar

  • Overpressure single side 60.00000 bar

  • Max. pressure 60.00000 bar

  • Min. upper range value 0.04000 bar

  • Absolute and gauge pressure Cerabar PMP55

  • Digital pressure transmitter with fully welded diaphragm seal for measurement in gases or liquids

  • Large variety of different process connections and membrane materials

  • New TempC Membrane minimizes influences of ambient and process temperature fluctuations

  • Easy menu-guided commissioning via on-site display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION Fieldbus

  • For process pressure monitoring up to SIL2, certified to IEC 61508 and IEC 61511

  • Modular concept for easy replacement of display or electronics

  • Seamless and independent system integration (HART/PA/FF)

  • Single chamber aluminum or stainless steel (316L) housing.

  • Process connections: Threads, flanges or hygienic connections

  • Process temperature: -70 to +400°C (-94 to +752°F)

  • Measuring ranges: -1/0 up to +400bar (-15/0 up to +6,000psi)

  • Accuracy: ± 0.15%, "Platinum" ± 0.075%

  • International explosion protection certificates, SIL, hygienic approvals, marine approvals

  • Shipping Weight : 4.5 Kg
