Description
Estimated Lead Time: 3-4 Weeks
Manufacturer: Endress+Hauser
-
PMD75-ABA7B11CAU3
-

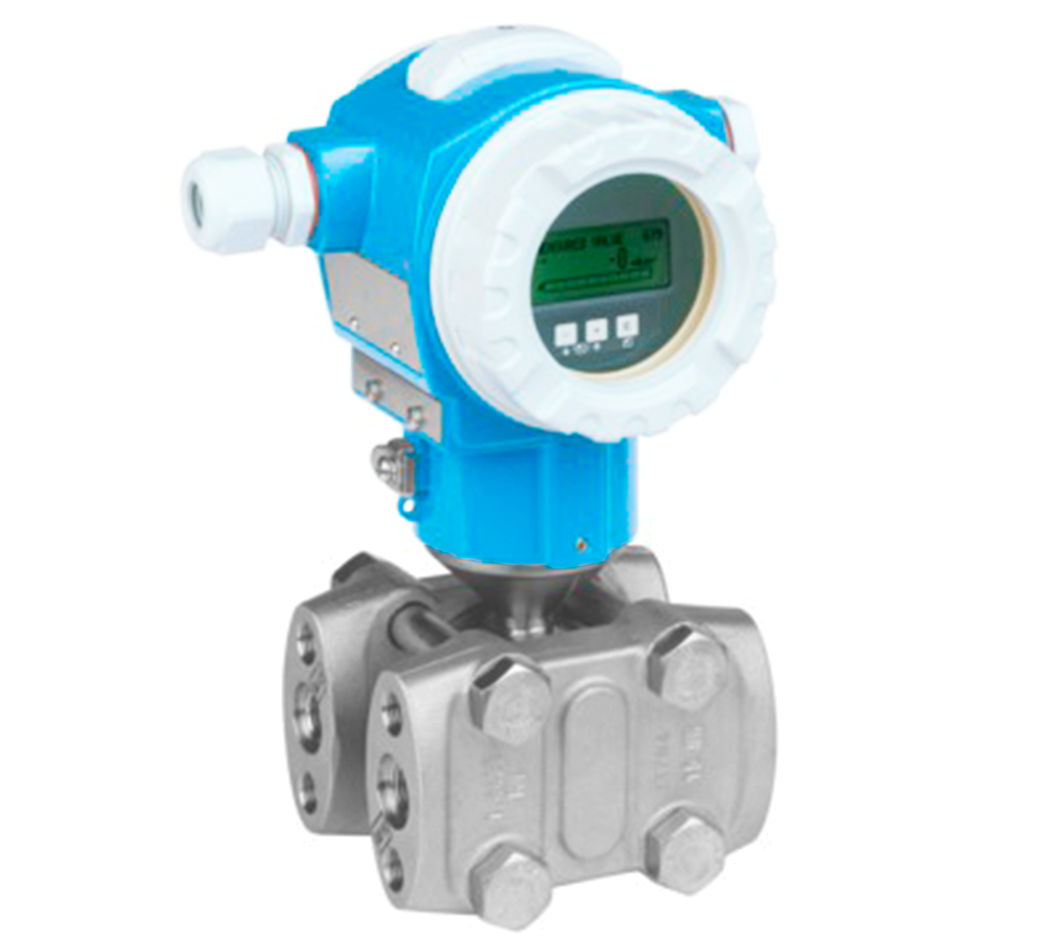

Differential pressure Deltabar PMD75
-
Differential pressure transmitter with metal sensor for measurement of pressure differences
-
The Deltabar PMD75 differential pressure transmitter with with piezoresistive sensor and welded metallic membrane is used in all industries for continuous measurement in liquids, vapors and gases.
-
The 3-key operation enables simple and reliable commissioning and operation.
-
Highest safety due to gas tight feedthrough with capabilities up to SIL2/3, certified to IEC 61508
-
Easy menu-guided commissioning via local display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION Fieldbus
-
HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics
-
Cost savings with modular concept for easy replacement of sensor, display or electronics
-
Overload-resistant up to 420bar / 42MPa / 6300psi, function-monitored
-
Seamless and independent system integration (HART/PA/FF)
-
Approval : For non-hazardous areas
-
Output; Operation: 4 to 20 mA HART, SIL operation inside, LCD
-
Housing; Cable entry; Protection: Aluminum T14 housing, optional display on the side, IP 66/67/NEMA 4X/ 6P, Gland M 20x1.5
-
Nominal range; Cell body material; PN:10 mbar/1 kPa/0.15 psi ;AISI 304 (1.4301) ; 160 bar/16 MPa/2400 psi
-
Calibration; Unit:Nominal range; mbar/bar
-
Process isolating diaphragm material : AISI 316L
-
Process connection; Material:1/4 - 18 NPT IEC 61518, mounting: 7/16 - 20 UNF, C22.8, side vent, including 4 fastening bolt connections and 2 vent valves (AISI 316L)
-
Seal : FKM Viton
-
Additional option 1 : Mounting bracket, wall/pipe, 304
-
Additional option 2 : Routine test with certificate, inspection certificate as per EN 10204 3.1
-
Shipping Weight : 5.5 Kg
