Description
-
Estimated Lead Time : 6 - 8 weeks.
-
Manufacturer : Rosemount
-
Product no : 8800CW030SA3N1D1E5M5R20Q4
-

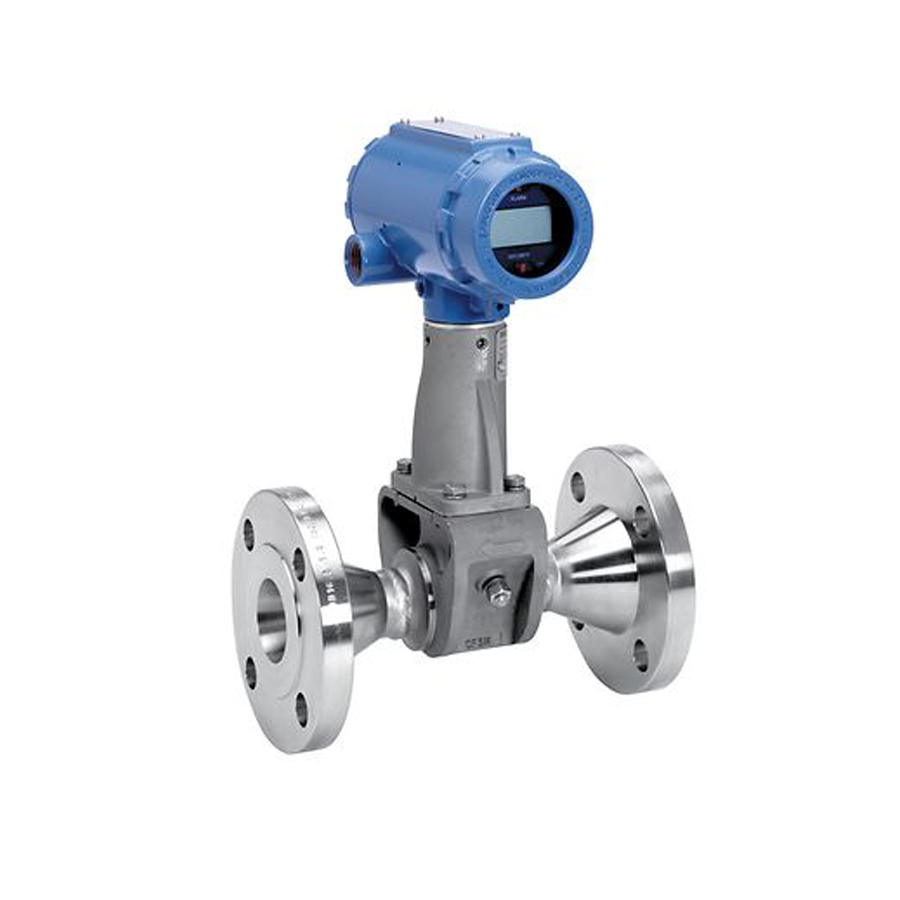

Product type : 8800C Vortex Flowmeter
-
Meter Style : W = Wafer style
-
Line Size : 030 = 3 Inches (80 mm)
-
Flange or Alignment Ring Size : A3 = ASME B16.5 (ANSI) RF Class 300
-
Sensor Process Temperature Rangen : N = Standard: -40 to 450°F (-40 to 232°C)
-
Conduit Entry : 1 = 1 /2 -14 NPT
-
Outputs : D = 4-20 mA digital electronics (Hart® protocol)
-
Calibration : 1 = Flow calibration
-
Hazardous Locations Certifications : E5 = Factory Mutual (FM) explosion-proof approval
-
Other Options : M5 = LCD indicator
-
Other Options : R20 = Remote electronics with 20 ft (6,1 m) cable
-
Certification Options : Q4 = Calibration data sheet per ISO 10474 3.1.B
-
Weight : 20.9 Kg
-
Shipping Weight : 25 Kg
