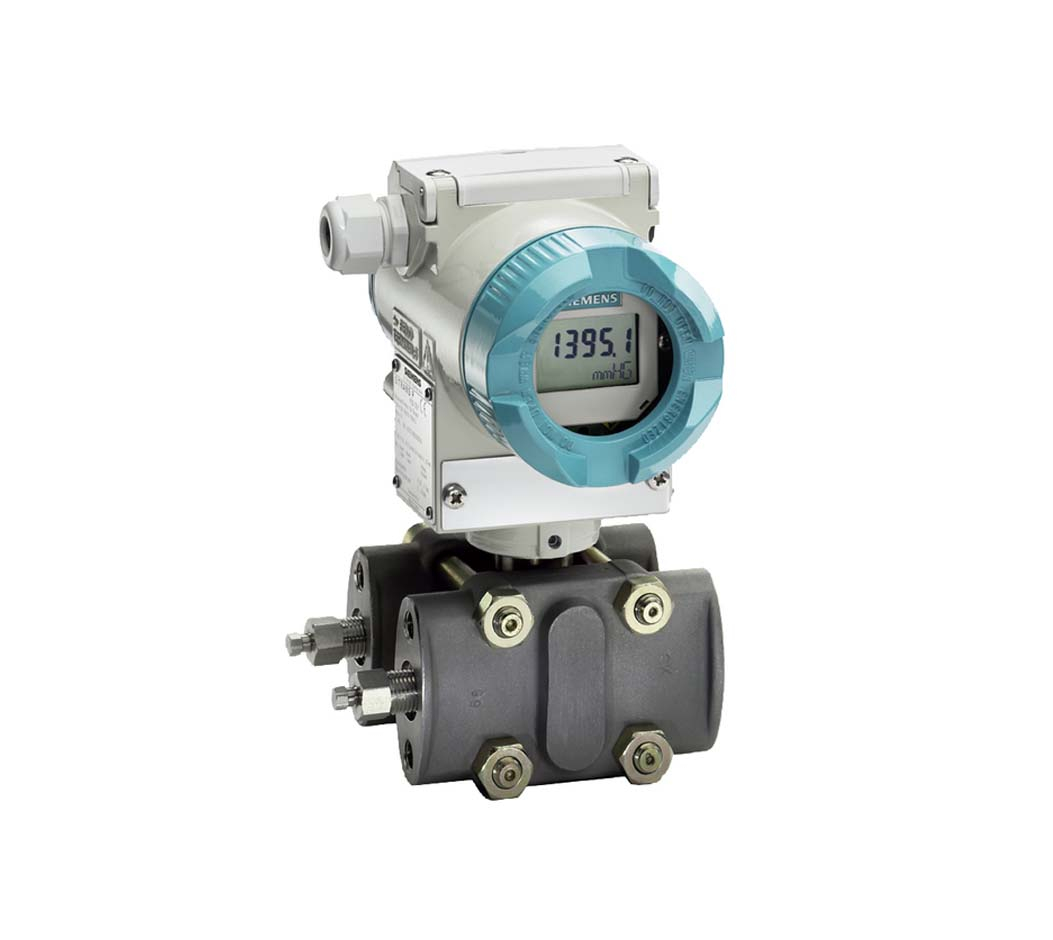

7MF4433 Differential Pressure and Flow Transmitters(7MF4433-1BB02-2AA6-Z,A01),siemens

$926.10
$1,183.00
-$256.90
Quantity

Description

  • Estimated Lead Time : 10 - 12 weeks.

  • Manufacturer : Siemens

  • Product No. : 7MF4433-1BB02-2AA6-Z,A01

  • Product type : 7MF4433 Differential Pressure and Flow Transmitters

  • Measuring cell filling and cell cleaning : 1 = Silicone oil, Standard

  • Span : B = PN 32 (MWP 464 psi), 1 to 20 mbar (0.4015 to 8.03 inH2O)

  • Wetted parts materials (Seal diaphragm and Parts of measuring cell) : B = Hastelloy, Stainless steel

  • Process connection : 0 = Sealing screw opposite process connection: - Mounting thread M10 to DIN 19213

  • Non-wetted parts materials ( Process flange screws and Electronics housing) : 2 = Stainless steel and Die-cast aluminium

  • Version : 2 = International version, English label inscriptions and documentation in 5 languages on CD

  • Explosion protection : A = Without

  • Electrical connection / cable entry : A = Screwed gland PG 13.5; Adapter

  • Display : 6 = With visible digital indicator

  • ZA01 = Transmitter with mounting bracket of: Steel

  • Weight : 4.5 Kg

  • Shipping Weight : 7 Kg
