7MF4033-1DA00-1AB7-Z(B11+ Y01+Y15+Y21+C11)(7MF4033-1DA00-1AB7-ZB11+Y01+Y15+Y21+C11),siemens

$734.40
$938.00
-$203.60
Quantity
Sku : 7MF4033-1DA00-1AB7-ZB11+Y01+Y15+Y21+C11
Weight : 7kg

Description

  • Estimated Lead Time : 6-8 Weeks

  • Manufacturer : Siemens

  • 7MF4033-1DA00-1AB7-Z(B11+ Y01+Y15+Y21+C11)

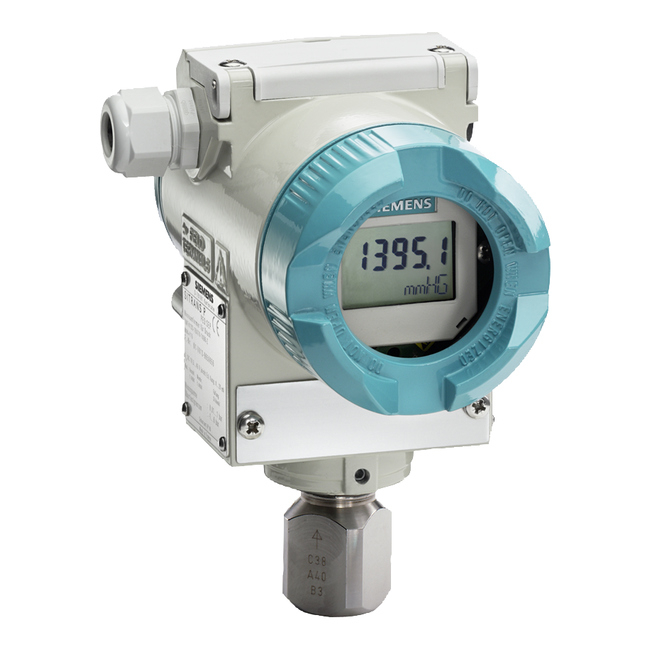

  • 7MF4033-Pressure transmitter, two-wire, series DSIII

  • 1-Measuring cell filling : Silicone oil , Measuring cell cleaning : Normal

  • D-Span : 2.3 To 230 psi , PN : 460 psi

  • A-Wetted parts materials
    Seal diaphragm : Stainless steel
    Process connection : Stainless steel

  • 0-Process connection : Connection shank G1/2 A

  • 0-Non-wetted parts materials : Housing diecast aluminum

  • 1-Standard version

  • A-Explosion protection : Without

  • B-Electrical connection / cable entry: Female thread M 20 x 1.5

  • 7-Display : with window (digital display visible, setting: as specified in Y20)

  • Z- Add "-Z" to order number and add short spec

  • B line: B11+ Y01+Y15+Y21+C11
    B11-Labeling of the rating plate (instead of German):English
    Y01-Measuring range to be set, specify in clear text: 0 to ... mbar, psi, kPa, Mpa, ... (27 characters maximum)
    Y15-Tag number / description (16 characters maximum) specify in clear text:
    C11 : Manufacturer test certificate M according to DIN 55 350, Part 18, and according to ISO 8402

  • Weight (without options) with mounting flange without tube : Pressure series 7MF4033 about 3.3 lbs (1.5 kg)

  • Shipping Weight : 3 Kg
