Description
-
Estimated Lead Time : 6 - 8 weeks.
-
Manufacturer : Rosemount
-
Product no : 5301HS2S1V5AM00226CBI1M1P1Q4Q8W2S3R3013
-

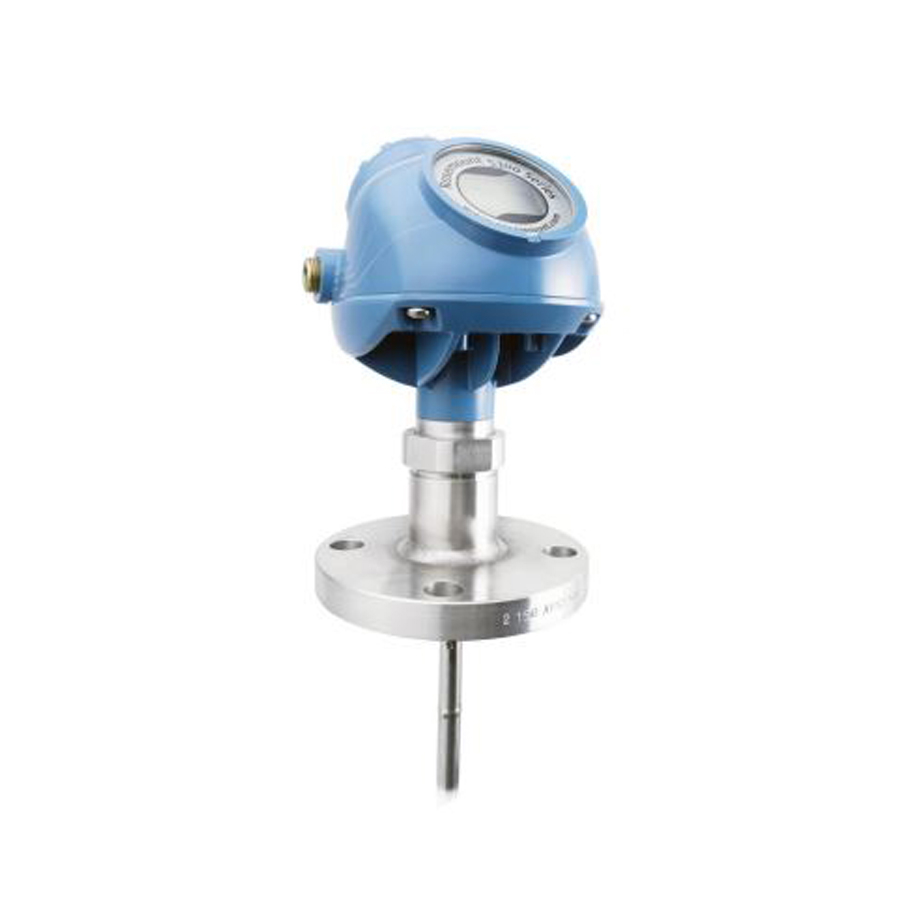

Product type : 5301 Guided Wave Radar Liquid Level or Interface Transmitter
-
Model : 5301 = Guided Wave Radar Liquid Level or Interface Transmitter (interface available for fully submerged probe)
-
Field of applications : Rosemount 5301, for liquid level or submerged interface measurements
-
Signal output : H = 4-20 mA with HART communication (default output from factory is HART 5, add option code HR7 for HART 7)
-
Housing material : S = Stainless Steel, Grade CF8M (ASTM A743)
-
Conduit / cable threads : 2 = M20 x 1.5 adapter
-
Operating temperature and pressure : S - Standard: - 15 to 580 psig @ 302 °F (-1 to 40 bar @ 150 °C), 1A, 2A, 3A, 3B, 4A, 4B, 4S, 5A, and 5B Probe type
-
Material of construction Process connection / probe : 1 = 316/316L/EN 1.4404, all probe type, S, H, P, C Valid operation temperature and pressure
-
Sealing, O-ring material (consult the factory for other O-ring materials) : V = Viton® Fluoroelastomer
-
Probe type : 5A - Flexible Single Lead with weight, Flange / 1-in.(6), 1½-in., 2-in.(6) Thread / Tri Clamp process connection, Min: 3 ft. 4 in. (1 m) Max: 164 ft. (50 m) probe lengths
-
Probe length units : M = Metric (meters, centimeters)
-
Total probe length (feet/m) : 002
-
Total probe length (in./cm) : 26
-
Process connection - size / type (consult the factory for other process connections) : CB = 4-in. Class 300, RF (Raised Face Type) ASME flanges, 1, 2, 3, 7, 8, H, D Material of construction, S, H, P, C Operating temperature and pressure.
-
Hazardous locations certifications : I1 = ATEX Intrinsic Safety
-
Display : M1 = Integral digital display
-
Hydrostatic testing : P1= Hydrostatic testing
-
Special certifications : Q4 = Calibration Data Certification
-
Special certifications : Q8 = Material Traceability Certification consistent with ISO10474-3.1:2013 / EN10204-3.1:2004
-
Weight and anchoring options for flexible single probes (probe type 5A) : W2 = Short weight (when measuring close to the probe end) Weight=0.88 lb (0.40 kg. Length=2 in. (50 mm), Diameter=1.5 in. (37.5 mm)
-
Centering discs (see page 51 for size recommendation) : S3 = 3-in. Centering disc, 2.7 in. (68 mm) Outer diameter.
-
Engineered solutions : R3013 = Engineered Solutions beyond standard model codes. (Consult factory for details)
-
Dimensions approx. (HxWxD) : 25.75 x 18 x 13.3 cm
-
Shipping Weight : 8 kg
