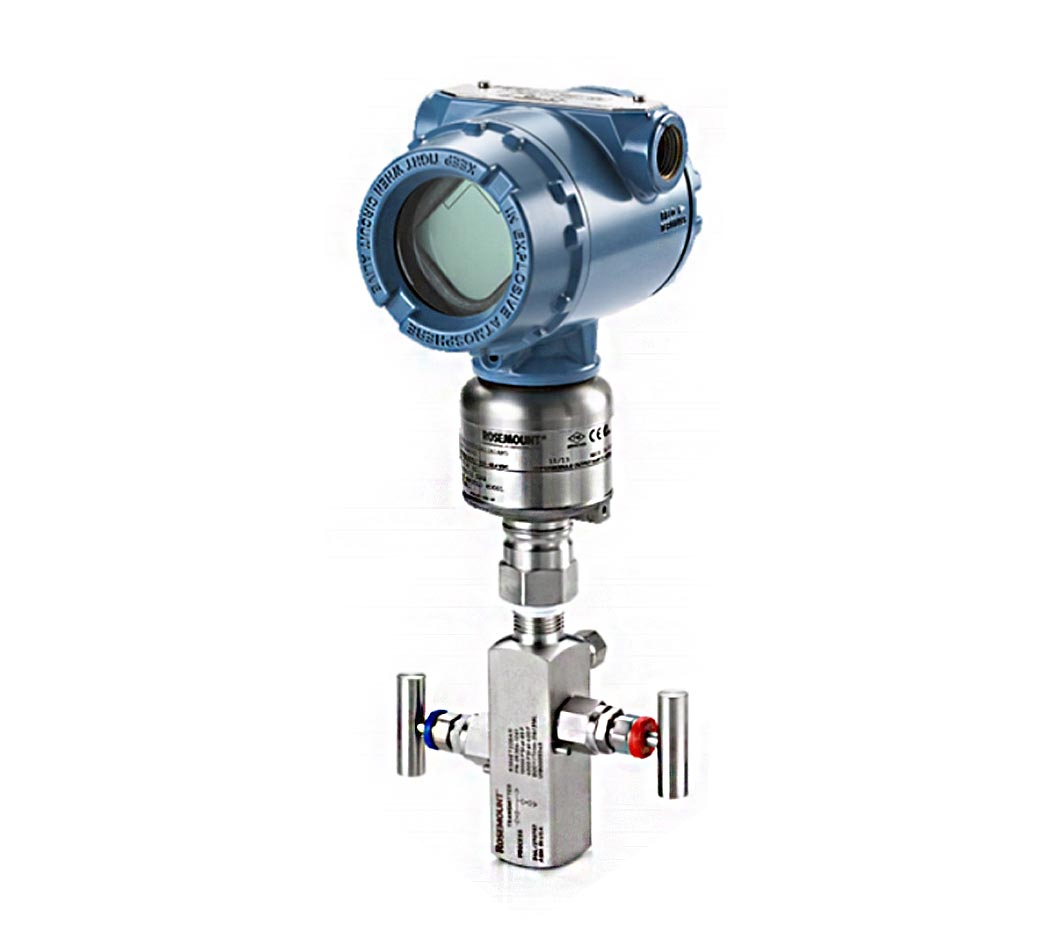

3051T In-Line Pressure Transmitter + 0306 Pressure Manifold(3051TG4A2B21AB4E5M5Q4Q8S5+0306RT22BA11),rosemount

$933.30
$1,192.00
-$258.70
Quantity
Sku : 3051TG4A2B21AB4E5M5Q4Q8S5+0306RT22BA11
Weight : 1.1kg

Description

  • Estimated Lead Time : 4 - 8 weeks.

  • Manufacturer : Rosemount

  • Product No. : 3051TG4A2B21AB4E5M5Q4Q8S5+0306RT22BA11

  • Product Type : In-Line Pressure Transmitter + 0306 Pressure Manifold

  • 3051TG4A2B21AB4E5M5Q4Q8S5 = 3051T In-Line Pressure Transmitter

  • Measurement type : G = Gage

  • Pressure range : 4 = –14.7 to 4000 psi (–1,01 to 275,79 bar)

  • Transmitter output : A = 4–20 mA with digital signal based on HART Protocol

  • Process connection style : 2B = 1/2–14 NPT female (range 1–5 only)

  • Isolating diaphragm : 2 = 316L SST, Process connection wetted parts material 316L SST

  • Sensor fill fluid : 1 = Silicone

  • Housing material : A = Aluminum, 1/2–14 NPT Conduit entry size

  • Mounting bracket : B4 = Bracket for 2-in. pipe or panel mounting, all SST

  • Product certifications : E5 = FM Explosion-proof, Dust Ignition-proof

  • Display and interface options : M5 = LCD display

  • Calibration certificate : Q4 = Calibration Certificate

  • Material Traceability Certification : Q8 = Material Traceability Certification per EN 10204 3.1

  • Integral assembly : S5 = Assemble to Rosemount 306 Integral Manifold Quality certification for safety : QT = Safety certified to IEC 61508 with certificate of FMEDA

  • Weight : 8 Kg

  • 0306RT22BA11 = 0306 Pressure Manifold

  • Manufacturer : R = Rosemount

  • Manifold style : T = Threaded

  • Manifold type : 2 = Two valve

  • Body : 2 = 316 SST/316L SST, Bonnet = 316 SST, Stem and tip/ball = 316 SST

  • Process connection style : BA = 1/2–14 female NPT process connection for in-line transmitter

  • Packing material : 1 = PTFE

  • Valve seat : 1 = Integral

  • Weight : 1.1 Kg

  • Total weight : 9.1 Kg

  • Shipping Weight : 12 Kg
