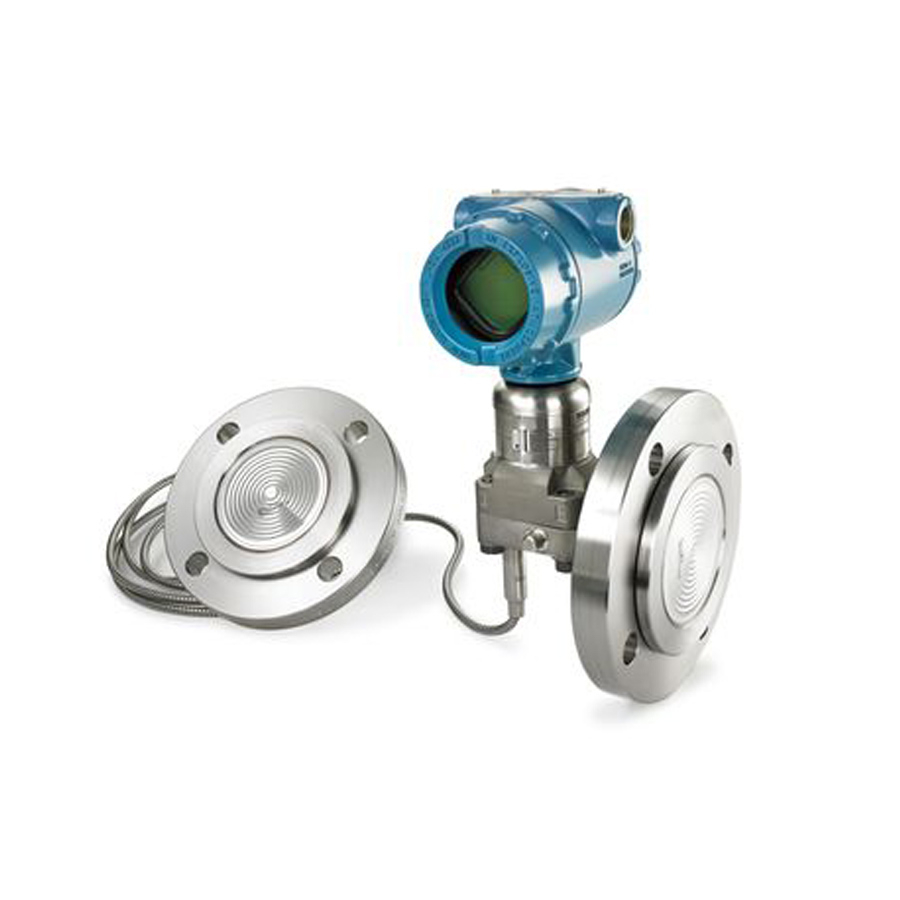

3051C Coplanar Pressure Transmitter +(3051CD4A22A1BS2B4I1M5Q4Q8+1199DDB59AFFW71DC00+1199DDB59AFFW71DC00),rosemount

$3,217.50
$4,111.00
-$893.50
Quantity
Sku : 3051CD4A22A1BS2B4I1M5Q4Q8+1199DDB59AFFW71DC00+1199DDB59AFFW71DC00
Weight : 6.21kg

Description

  • Estimated Lead Time : 6 - 8 weeks.

  • Manufacturer : Rosemount

  • Product No. : 3051CD4A22A1BS2B4I1M5Q4Q8+1199DDB59AFFW71DC00+1199DDB59AFFW71DC00

  • Product type : 3051C Coplanar Pressure Transmitter + 1199 Seal System FFW Flush Flanged Seal + 1199 Seal System FFW Flush Flanged Seal

  • 3051CD4A22A1BS2B4I1M5Q4Q8 : 3051C Coplanar Pressure Transmitter

  • Measurement Type : D = Differential

  • Pressure ranges(range/min.span) : 4 = –300 to 300 psi (–20.68 to 20.68 bar)

  • Transmitter output : A = 4–20 mA with digital signal based on HART® Protocol

  • Materials of construction 2 = Process Flange Type : Coplanar, Flange : SST, Drain/Vent : SST

  • Isolation Diaphragm : 2 = 316L SST

  • O-ring : A = Glass-filled PTFE

  • Sensor Fill Fluid : 1 = Silicone

  • Housing Material,Conduit entry size : B = Aluminum. M20 x 1.5

  • Seal Assemblies : S2 = Assemble to two Rosemount 1199 seals

  • Mounting bracket : B4 = Coplanar flange bracket, all SST, 2-in. (51 mm) pipe and panel

  • Product certifications : I1 = ATEX Intrinsic Safety and Dust

  • Display and interface options : M5 = LCD display

  • Calibration certificate : Q4 = Calibration Certificate

  • Material traceability certification : Q8 = Material Traceability Certification per EN 10204 3.1

  • Weight : 3.4 Kg

  • 1199DDB59AFFW71DC00 : 1199 Seal System FFW Flush Flanged Seal

  • Type : 1199 = Diaphragm Seal

  • Seal Location : D = Same Seal on Both High and Low Pressure Sides of Transmitter, Repairable-Welded Connection Type, Differential Transmitter

  • Temperature Limits : D = D.C.200 Silicone Fill Fluid, –45 to 100 °C Pabs < 1 bara, –45 to 205 °C Pabs > 1 bara, 0,93 Specific Gravity

  • B

  • Capillary Connection Length : 59 = 5,0 m

  • Industry standards : A = ASME B16.5 (American Society of Mechanical Engineers)

  • Process connection style : FFW = Flush flanged seal

  • Process connection size : 7 = 3-in ASME B16.5, 80 A JIS B2238

  • Flange/pressure rating : 1 = Class 150 ASME B16.5, 10K JIS B2238

  • Diaphragm and wetted, upper housing, flange material : DC = Tantalum, seam welded Diaphragm and wetted, 316 SST Upper housing, 316 SST Flange

  • Flushing connection ring material (lower housing) : 0 = None

  • Flushing connections (connection size) : 0 = None

  • Weight : 6.21 kg

  • 1199DDB59AFFW71DC00 : 1199 Seal System FFW Flush Flanged Seal

  • Type : 1199 = Diaphragm Seal

  • Seal Location : D = Same Seal on Both High and Low Pressure Sides of Transmitter, Repairable-Welded Connection Type, Differential Transmitter

  • Temperature Limits : D = D.C.200 Silicone Fill Fluid, –45 to 100 °C Pabs < 1 bara, –45 to 205 °C Pabs > 1 bara, 0,93 Specific Gravity

  • B

  • Capillary Connection Length : 59 = 5,0 m

  • Industry standards : A = ASME B16.5 (American Society of Mechanical Engineers)

  • Process connection style : FFW = Flush flanged seal

  • Process connection size : 7 = 3-in ASME B16.5, 80 A JIS B2238

  • Flange/pressure rating : 1 = Class 150 ASME B16.5, 10K JIS B2238

  • Diaphragm and wetted, upper housing, flange material : DC = Tantalum, seam welded Diaphragm and wetted, 316 SST Upper housing, 316 SST Flange

  • Flushing connection ring material (lower housing) : 0 = None

  • Flushing connections (connection size) : 0 = None

  • Weight : 6.21 kg

  • Shipping weight : 30 Kg
