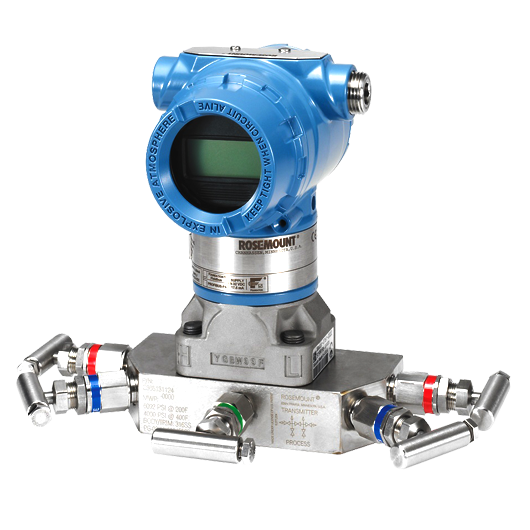

3051C Coplanar™ Pressure Transmitter + 305R Integral Manifolds(3051CD3A03A1KS5l1M6Q4Q8P1+0305RC52B11B4L4),rosemount

$1,485.90
$1,899.00
-$413.10
Quantity
Sku : 3051CD3A03A1KS5l1M6Q4Q8P1+0305RC52B11B4L4
Weight : 15kg

Description

  • Estimated Lead Time : 6 - 8 weeks.

  • Manufacturer : Rosemount

  • Product No. : 3051CD3A03A1KS5l1M6Q4Q8P1+0305RC52B11B4L4

  • Product Type : 3051T In-Line Pressure Transmitter + Pressure manifold

  • 3051CD3A03A1KS5l1M6Q4Q8P1 = 3051T In-Line Pressure Transmitter

  • Measurement type : D = Differential

  • Pressure range : 3 = –1000 to 1000 inH2O (–2,48 to 2,48 bar)

  • Transmitter output : A = 4–20 mA with digital signal based on HART® Protocol

  • Materials of construction : 0 = Alternate process connection

  • : 3 =

  • O-ring : A = Glass-filled PTFE

  • Sensor fill fluid : 1 = Silicone

  • Housing material : K = SST, M20 x 1.5 Conduit entry size

  • Integral assembly : S5 = Assemble to Rosemount 305 Integral Manifold

  • Product certifications : I1 = ATEX Intrinsic Safety and Dust

  • Display type : M6 = LCD display for SST housing (housing codes J, K, L, and M only)

  • Calibration certificate : Q4 = Calibration Certificate

  • Material Traceability Certification : Q8 = Material Traceability Certification per EN 10204 3.1

  • Pressure testing : P1 = Hydrostatic testing with certificate

  • 0305RC52B11B4L4  = Pressure manifold

  • Manufacturer : R = Rosemount

  • Manifold style : C = Coplanar

  • Manifold type : 5 = Five valve

  • Body : 2 = 316 SST/316L SST, Bonnet = 316 SST, Stem and tip/ball = 316 SST

  • Process connection style : B = 1/2–14 NPT female

  • Packing material : 1 = PTFE

  • Valve seat : 1 = Integral

  • Mounting brackets : B4 = SST mounting bracket for 2-in. pipe mounting, 300 SST bolts

  • Bolt materials : L4 = Austenitic 316 SST bolts

  • Shipping Weight : 16 Kg
