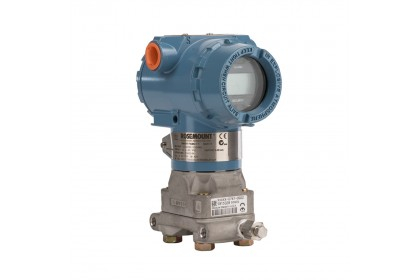

3051 Pressure Transmitter(3051S1TA4A2E11A1AE5M5T1),rosemount

$1,020.60
$1,304.00
-$283.40
Quantity

Description

  • Estimated Lead time : 4-6 Weeks

  • Manufacturer : Rosemount

  • Product Number: 3051S1TA4A2E11A1AE5M5T1

  • 3051S1TA4A2E11A1AE5M5T1

  • 3051S - Model : Scalable pressure transmitter

  • 1 - Performance class : Ultra: 0.025% span accuracy, 200:1 rangedown, 15-year stability, 15-year limited warranty

  • T - Connection type: In-line

  • A - Measurement type: Absolute

  • 4A - Pressure range:

    • Gauge: –14.7 to 4000 psi (–1.01 to 275.79 bar)

    • Absolute: 0 to 4000 psia (275.79 bar)

  • 2 - Isolating diaphragm: 316L SST

  • E1 - Product certifications : ATEX Flameproof

  • 1A - Description

    • Housing style: Plantweb™ housing

    • Material: Aluminum ½

    • Conduit entry size: ½–14 NPT

  • A - Transmitter output : 4–20 mA with digital signal based on HART® protocol

  • E5 - Certic : USA Explosion-proof, Dust Ignition-proof

  • M5 - Display type: Plantweb™ LCD display

  • T1 - Transient protection : Transient terminal block

  • Shipping Weight: 5.0 Kg
