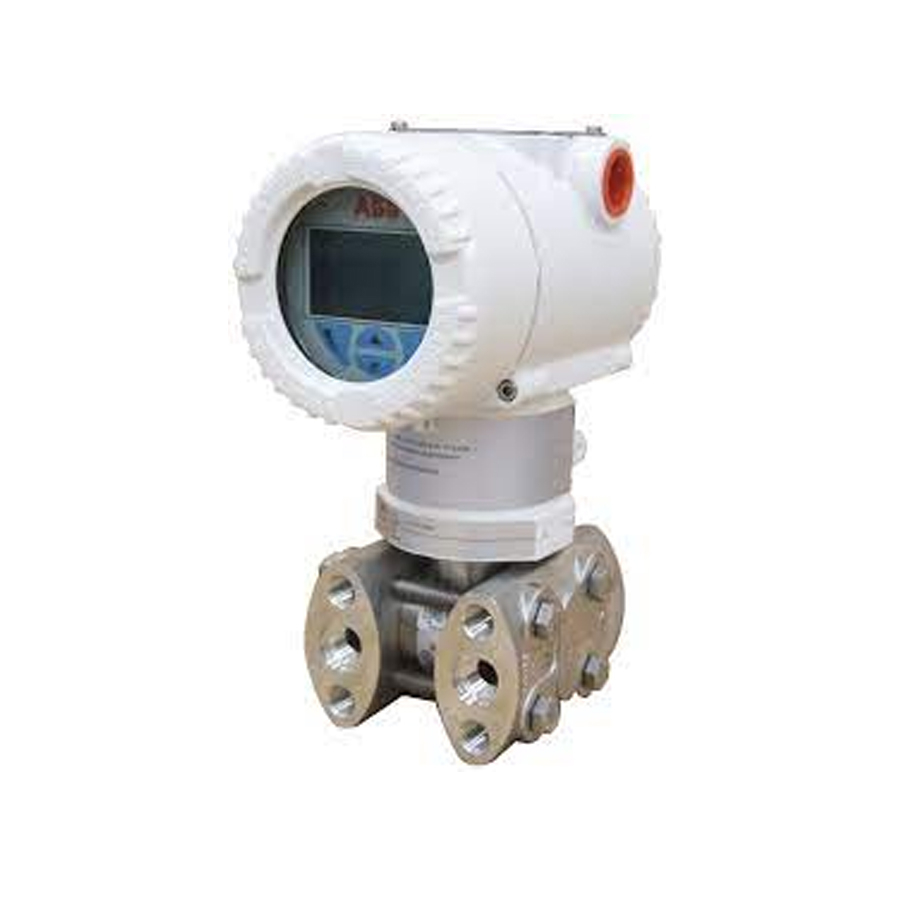

266MST Differential Pressure Transmitters(266MSTNCSB6T1E2L1B5I2C1H3),ABB

$2,903.40
$3,709.00
-$805.60
Quantity
Sku : 266MSTNCSB6T1E2L1B5I2C1H3
Weight : 5.85kg

Description

  • Estimated Lead Time : 8 - 10 weeks.

  • Manufacturer : ABB

  • Product No. : 266MSTNCSB6T1E2L1B5I2C1H3

  • Product type : 266MST Differential Pressure Transmitters

  • SENSOR - Span limits : N = 20 and 2000 kPa (0.2 and 20 bar, 2.9 and 290 psi)

  • Maximum Working Pressure : C = 16 MPa / 160 bar / 2320 psi (Not available with Sensor Span Limits code A)

  • Diaphragm material / Fill fluid : S = AISI 316L SST (1.4435) / Silicone oil (NACE)

  • Process Flanges and Adapters Material / Connection : B = AISI 316L SST (1.4404 / 1.4408) / 1/2 in –14 NPT female through adapter (horizontal connection) (NACE)

  • Bolts Material / Gaskets Material : 6 = AISI 316 SST (NACE – not exposed to H2S) / Perbunan

  • Housing material and electrical connection : T = AISI 316L SST (Barrel type) / M20 x 1.5 (I2 or I3 required)

  • Output : 1 = HART digital communication and 4 to 20 mA

  • Explosion Protection Certification : E2 = ATEX Explosion Proof Ex db_tb

  • Integral LCD : L1 = With integral LCD display

  • Mounting Bracket Shape / Material : B5 = Flat type bracket / AISI 316 SST (1.4401) (Suitable for AISI housing)

  • Additional tag plate : I2 = Tag and certification stainless steel plates and laser printing

  • Certificates : C1 = Inspection certificate 3.1 acc. EN 10204 of calibration

  • Material Traceability : H3 = Inspection certificate 3.1 acc. EN 10204 of process wetted parts with analysis certificates as material verification

  • Weight : 5.85 Kg

  • Shipping Weight : 10 Kg
