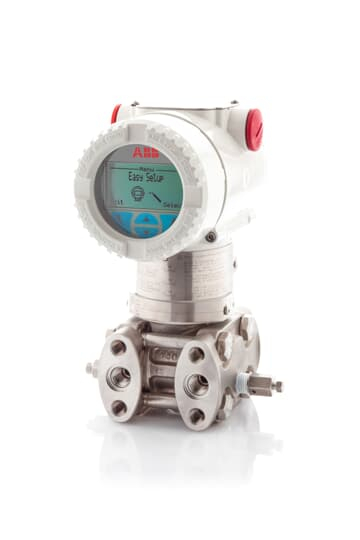

266DSH Differential Pressure Transmitter(266DSHFSSA2A1V1E1L1I2),abb

$1,036.80
$1,325.00
-$288.20
Quantity
Sku : 266DSHFSSA2A1V1E1L1I2
Weight : 8kg

Description

  • Estimated Lead Time : 8 - 10 weeks.

  • Manufacturer : ABB

  • Part No. : 266DSHFSSA2A1V1E1L1I2

  • Model : 266DSH Differential Pressure Transmitter

  • 266DSH = Differential Pressure Transmitter – BASE ACCURACY 0.06 %

  • SENSOR - Span limits : F = 0.4 and 40 kPa, 4 and 400 mbar, 1.6 and 160 inH2O

  • Application : S = Differential measurement at standard static pressure

  • Diaphragm material / Fill fluid (wetted parts) : S = AISI 316 L ss, Silicone oil

  • Process flanges/adapters material and connection (wetted parts) : A = AISI 316 L ss (Horizontal connection), 1/4 in. – 18 NPT-f direct

  • Bolts/Gasket (wetted parts) : 2 = For standard static, high static and gauge versions, AISI 316 ss, PTFE

  • Housing material and electrical connection : A = Aluminium alloy ( barrel version), 1/2 in. – 14 NPT

  • Output/Additional options : 1 = HART and 4 to 20 mA - Advanced functionality (includes option R1), Options requested by “Additional ordering code”

  • Drain/vent valve (material and position) (wetted parts) : V1 = AISI 316 L ss, on process axis

  • Hazardous area certifications : E1 = ATEX Intrinsic Safety Ex ia

  • Dimensions (WxHxD), approx : 14.2 cm X 21 cm X 11.3 cm

  • Shipping Weight : 9 Kg
