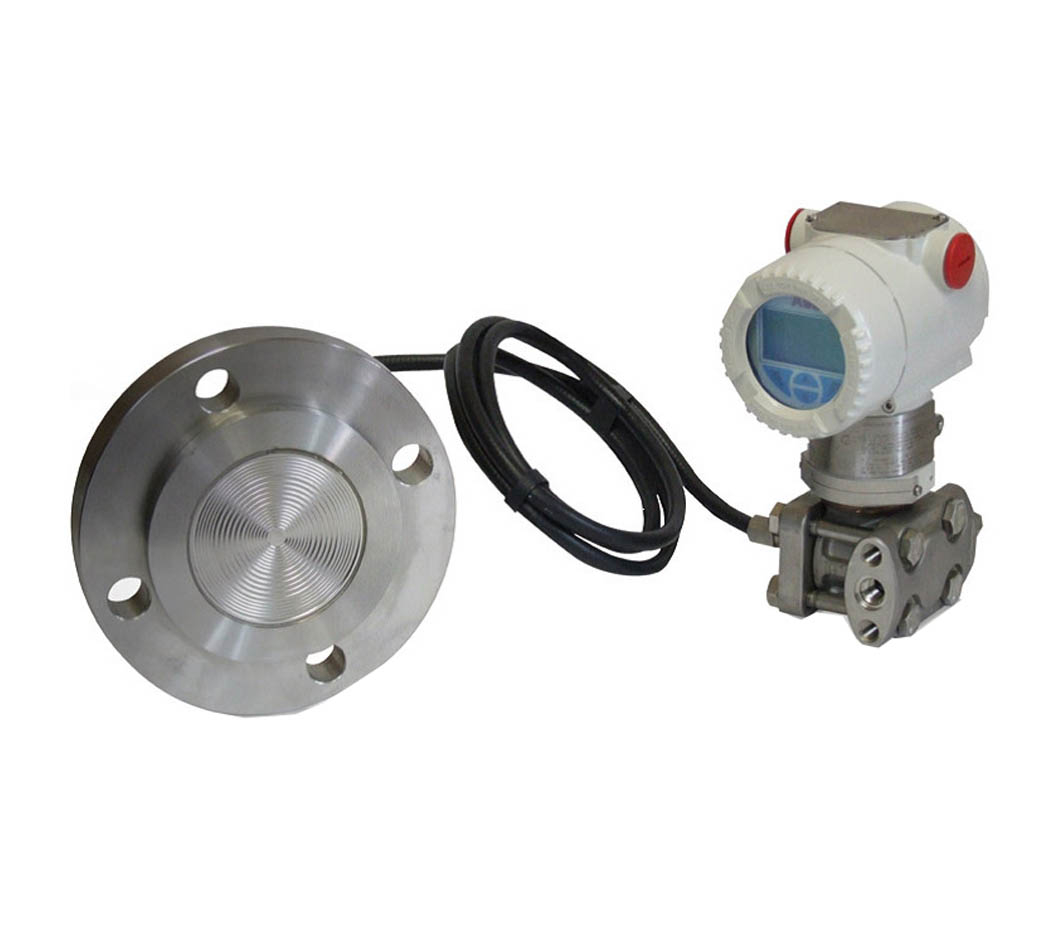

266DRH Differential Pressure Transmitter with remote seal(266DRH-FSSA2A1V1E1L1S2I2-S26FAHE2SFSM11SNNN),

$5,084.10
$6,496.00
-$1,411.90
Quantity
Sku : 266DRH-FSSA2A1V1E1L1S2I2-S26FAHE2SFSM11SNNN
Weight : 8kg

Description

  • Estimated Lead Time : 6 - 8 weeks.

  • Manufacturer : ABB

  • Part No. : 266DRH-FSSA2A1V1E1L1S2I2–S26FAHE2SFSM11SNNN

  • Model : 266DRH Differential Pressure Transmitter with remote seal

  • 266DRH = Differential Pressure Transmitter with remote seal – BASE ACCURACY 0.06 %

  • SENSOR - Span limits : F = 0.67 and 40 kPa, 6.7 and 400 mbar, 2.67 and 160 inH2O

  • Application : S = Standard static pressure

  • Diaphragm material / Fill fluid (wetted parts) : S = AISI 316 L ss, Silicone oil (one remote seal only to be quoted)

  • Process flanges/adapters material and connection (wetted parts) : A = AISI 316 L ss (Horizontal connection), 1/4 in. – 18 NPT-f direct

  • Bolts/Gasket (wetted parts) : 2 = AISI 316 ss, PTFE

  • Housing material and electrical connection : A = Aluminium alloy ( barrel version), 1/2 in. – 14 NPT

  • Output/Additional options : 1 = HART digital communication and 4 to 20 mA, Options requested by “Additional ordering code”

  • Drain/vent valve (material and position) (wetted parts) : V1 = AISI 316 L ss, on process axis

  • Hazardous area certifications : E1 = ATEX Intrinsic Safety II 1 G and II 1/2 G Ex ia IIC T6; II 1 D Ex iaD 20 T 95 °C and II 1/2D Ex iaD 21 T95 °C

  • Dimensions (WxHxD), approx : 9.1 cm X 17.9cm X 11.3 cm

  • Shipping Weight : 9 Kg
