Description
Estimated Lead Time : 8 - 10 weeks.
Manufacturer : Rosemount
Product No. : 2051L3AA0FC21AA

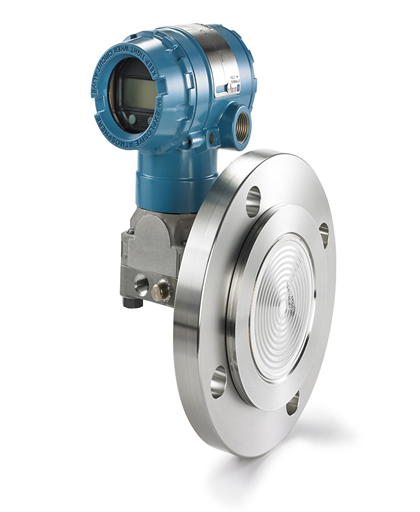

Product Type : Liquid Level Transmitter
Model : 2051L = Liquid Level Transmitter
Pressure range : 3 = –1000 to 1000 inH2O (–2,5 to 2,5 bar)
Transmitter output : A = 4–20 mA with digital signal based on HART Protocol
Process connection size, diaphragm material (high side) : A = 3-in./DN 80, 316L SST
Extension length (high side) : 0 = None, flush mount
Mounting flange size, rating, material (high side) : F = Size 3-in., Rating ANSI/ASME B16.5 Class 150, Material SST
Seal fill fluid (high side) : C = Silicone 704, 1.07 Specific gravity at 77 °F (25 °C), 32 to 401 °F (0 to 205 °C) Temperature limits (ambient temperature of 70 °F [21 °C])
