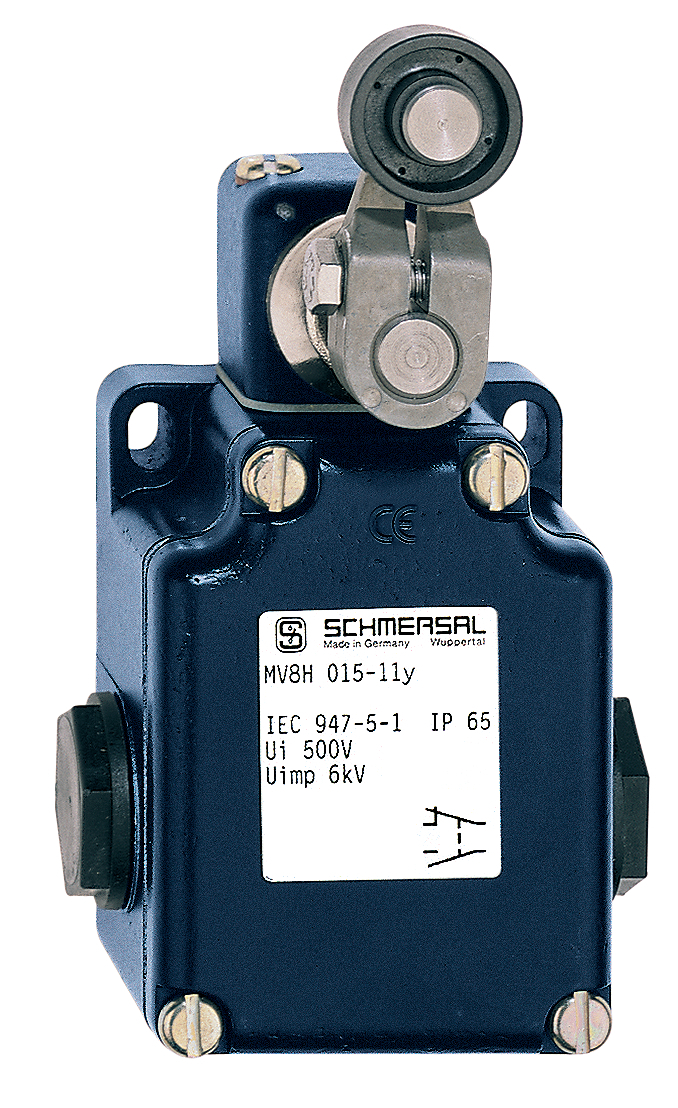

015 roller lever 8H Order Number : 131199145(MV8H 015-11Y-C),schmersal

$189.90
$243.00
-$53.10
Quantity

Description

  • Estimated Lead Time : 4 - 8 weeks.
  • Manufacturer : Schmersal
  • Product No. : MV8H 015-11Y-C
  • Product name : 015 roller lever 8H
  • Standards : EN 60947-5-1
  • Active principle : mechanical
  • Slide form : Castor
  • Enclosure material : Light-alloy diecast, paint finish
  • Enclosure coating material : painted
  • Material of the contacts, electrical : Silver
  • Roller material : Plastic
  • Number of openers : 1
  • Number of shutters : 1
  • Number of switching stages : 2
  • Actuating element : Roller lever
  • Mechanical life, minimum : 10,000,000 Operations
  • Actuating angle, from left of switch axis : 30 °
  • Actuating angle, from right of switch axis : 30 °
  • Contact opening : 2 x 1.2 mm
  • Actuating speed, minimum : 1 mm/min
  • Actuating speed, maximum : 3 m/s
  • Note (Actuating speed) : Actuating speed with vertical actuating angle to switch axis
  • Actuating torque : 0.2 Nm
  • Shipping Weight : 1.3 kg
